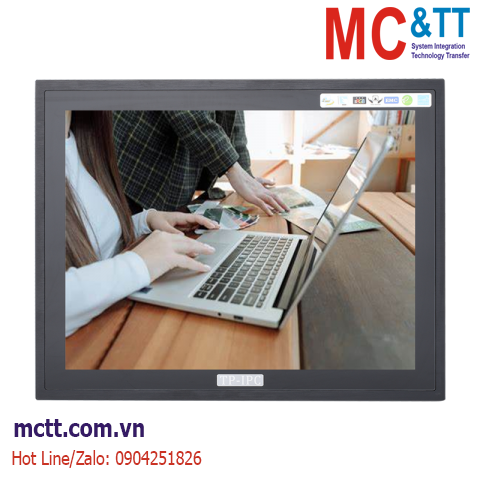

Máy tính công nghiệp màn hình cảm ứng 15 inch (2 Lan + 6 COM) MPPC-2L6C-11TH-15S

LCD Display

Touchscreen

Display Type

15″ TFT LCD

(LED backlight)

Touchscreen Type

5-Wire Resistive

Projected Capacitive

Non-Touchscreen

Resolution

1024*768

Touchscreen Method

Single point

Ten point

–

Luminance

350 cd/m2 (Typ.)

Surface

3H

6H

6H

Viewing Angle

89/89/89/89 (Typ.)(CR>=10)

Durability

1 million touches

–

–

Contrast Ratio

1000 : 1 (Typ.)

(Transmission)

Transparency

75%±8%

85±3%

>88%

Front Bezel

IP65 front bezel

System

CPU

CPU Model

Intel® Core™ i7-1195G7

Intel® Core™ i5-1135G7

Intel® Core™ i3-1115G4

Graphic

Intel® Iris® Xe Graphics, Up to 96 EUs,1.3Ghz

Intel® Iris® Xe Graphics, Up to 80 EUs,1.3Ghz

Intel® UHD Graphics, up to 48 EUs, 1.25Ghz

TDP

12 ~ 28W

RAM

2* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 64GB

Storage

M.2

1* M.2 (NGFF) 2280 M-key Slot, support PCIex4 Gen 4 NVMe

Supported OS

Win 8, Win 10; Win 10 IoT, Ubuntu, Debian, Kali, CentOS, etc.

I/O Interface

COM

3 * RS232 (COM1/2/3, Header, Full lanes);

2 * RS232/TTL (COM4/5, Header, 3 lanes);

1 * RS232/RS485/TTL (COM6, Header, 3 lanes)

(COM4/5/6 RS232/TTL sel by res, support RS232 by default. COM4/5/6 must be used at the same mode)

Ethernet

2* Intel® GbE LAN (10/100/1000 Mbps, RJ45)

USB

6* USB3.0

Video

2* HDMI(TYPE-A), max resolution up to 4096*2160@30Hz

Audio

1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header

SIM

1* Built-in nano-SIM Card Slot connected to M.2 B-key slot

Power Supply

12V DC; 1* DC 12V Power Input Thread Connector

(Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm))

Other

1* 8-bit GPIO header with 4 inputs and 4 outputs (optional)

Expansion

1* M.2 (NGFF) E-key Slot (PCIe+USB2.0, Support Wi-Fi+BT, 2230)

1* M.2 (NGFF) B-key Slot (PCIe/USB3.0+USB2.0, Support 5G+4G/3G, with 1* nano-SIM Card Slot, 3052)

Operating Temperature

Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow)

Storage Temperature

Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C

Relative Humidity

40 °C @ 95%, Non-Condensing

Operating vibration

2 Grms random vibration (5~500 Hz, 1 hour per axis, X/Y/Z)

Dimensions

357*283*55.5 mm

Net Weight

4.2 KG

Regulation

CE/FCC Class B, CE-LVD, RoHS, CCC

CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I7-1195G7

Tiger Lake

4

8

5.0 GHz

2.90 GHz

12 MB Intel® Smart Cache

12-28W

DDR4

Intel®Iris Xe Graphics; 96Eus

Intel® Core™ I5-1135G7

Tiger Lake

4

8

4.20 GHz

2.40 GHz

8 MB Intel® Smart Cache

12-28W

DDR4

Intel®Iris Xe Graphics; 80Eus

Intel® Core™ I3-1115G4

Tiger Lake

2

4

4.10 GHz

1.70 GHz

4 MB Intel® Smart Cache

12-28W

DDR4

Intel®Iris Xe Graphics; 48Eus

Part no.

Description

MPPC-2L6C-11TH-15S-CT-I3

15" TFT LCD, 1024*768, Capacitive Touch, with Intel® I3-1115G4, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-CT-I5

15" TFT LCD, 1024*768, Capacitive Touch, with Intel® I5-1135G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-CT-I7

15" TFT LCD, 1024*768, Capacitive Touch, with Intel® I7-1195G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-RT-I3

15" TFT LCD, 1024*768, Resistive Touch, with Intel® I3-1115G4, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-RT-I5

15" TFT LCD, 1024*768, Resistive Touch, with Intel® I5-1135G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-RT-I7

15" TFT LCD, 1024*768, Resistive Touch, with Intel® I7-1195G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-NT-I3

15" TFT LCD, 1024*768, Non-Touch, with Intel® I3-1115G4, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-NT-I5

15" TFT LCD, 1024*765, Non-Touch, with Intel® I5-1135G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter

MPPC-2L6C-11TH-15S-NT-I7

15" TFT LCD, 1024*768, Non-Touch, with Intel® I7-1195G7, 2*GLAN, 6*USB, 6*COM, 2*HDMI, Power Adapter
