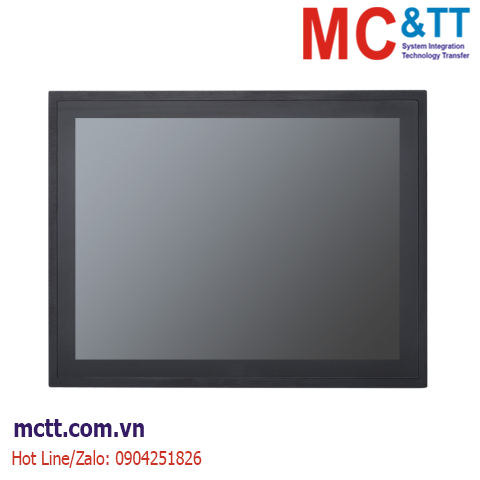

Máy tính công nghiệp màn hình cảm ứng 19 inch (2 Lan + 6 COM) MCTT MPPC-2L6C-12TH-19S

Mã sản phẩm: MPPC-2L6C-12TH-19S

Thương hiệu: MCTT

Tình trạng: Còn hàng

19″ TFT LCD Fanless Panel Computer with 12th Gen Intel® Core™ i7/i5/i3, 2 LAN, 6 USB, 6 COM, HDMI, DP++, Audio

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Máy tính công nghiệp màn hình cảm ứng 19 inch (2 Lan + 6 COM) MCTT MPPC-2L6C-12TH-19S

MPPC-2L6C-12TH-19S system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

Tính năng

12th Gen Intel Core CPU with Intel® Iris® Xe Graphics
Fast AI with hardware acceleration and Xe Architecture, up to 96 EUs and Vector Neural Network Instructions (VNNI) on the CPU for a high degree of parallelization in AI workloads;
Up to two video decode boxes, support for up to 48 simultaneous 1080p streams
Modular Expansion for Easy Maintenance, it comes with three M.2 slots for wireless cards (5G/4G, Wi-Fi, Bt, and GNSS) and M.2 SSD
The HDMI support 4096*2160@30Hz and DP++ support 4096*2304@60Hz;
Full sealed and aluminum alloy cooling enclosure, dustproof, antivibration and anti-interferenceand fully enclosed with fanless cooling system;

Thông số kỹ thuật

*LCD Display*		*Touchscreen*
Display Type	19″ TFT LCD (LED backlight)	Touchscreen Type	5-Wire Resistive	Projected Capacitive	Non-Touchscreen
Resolution	1280*1024	Touchscreen Method	Single point	Ten point	-
Luminance	250 cd/m2 (Typ.)	Surface	3H	6H	6H
Viewing Angle	85/85/80/80 (Typ.)(CR>=10)	Durability	1 million touches	–	-
Contrast Ratio	1000:1 (Typ.) ( Transmission )	Transparency	75%±8%	85±3%	>88%

System
CPU	CPU Model	Intel® Core™ i7-1255U	Intel® Core™ i5-1235U	Intel® Core™ i3-1215U
	Graphic	Intel® Iris® Xe Graphics, Up to 96 EUs,1.25Ghz	Intel® Iris® Xe Graphics, Up to 80 EUs,1.2Ghz	Intel® UHD Graphics, up to 64 EUs, 1.1Ghz
	TDP	15W
RAM		1* non-ECC SO-DIMM Socket, support DDR4-3200 MHz, up to 32GB
Storage	M.2	1* M.2 (NGFF) 2280 M-key Slot (support PCIex4 Gen 4 NVMe)
	SATA	1SATA3.0 7P slot on board (6Gb/s) , with 1 SATA Power Wafer
Supported OS		Win 10; Win 10 IoT, Linux, Ubuntu, Debian, Kali, CentOS, etc.
I/O Interface	COM	2RS232 (COM1/2, Wafer, Full lanes); 3RS232/TTL (COM3/4/5, Wafer, 3 lanes); 1 * RS232/RS485/TTL (COM6, Wafer, 3 lanes)
	Ethernet	2* Intel® GbE LAN (10/100/1000 Mbps, RJ45)
	USB	6* USB3.0 TYPE-A
	Video	1* HDMI, Support 40962160@30Hz; 1 DP++, Support 4096*2304@60Hz
	Audio	Realtek Audio HAD Codec, 1Line-Out + MIC 2in1, 1Amplifer Wafer, 3-W (per channel) into a 4-Ω Loads
	SIM	1*SIM Card wafer
	Power Supply	1 * DC 12V/24V Power Input Φ2.5mm Thread Jack
	Other	1* 8-bit GPIO wafer (optional)
Expansion		1 * M.2 Key-E Slot (PCIE+USB2.0, Default PCIE, Support WIFI, 2230) 1 * M.2 Key-B Slot (PCIE + USB3.0 + USB2.0, Support 5G/4G, 2242/3052)
Operating Temperature		Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow)
Storage Temperature		Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C
Relative Humidity		40 °C @ 95%, Non-Condensing
Dimensions		437.1358.194.5 mm
Net Weight		2.0 KG
Mounting		Panel mount kit (VESA mount kits optional)

Bộ xử lý CPU

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-1215U	Alder Lake	6	8	4.40 GHz	1.2 GHz	10 MB Intel® Smart Cache	15W	DDR4	Intel® UHD Graphics
Intel® Core™ I5-1235U	Alder Lake	10	12	4.40 GHz	1.3 GHz	12 MB Intel® Smart Cache	15W	DDR4	Intel®Iris Xe Graphics
Intel® Core™ I7-1255U	Alder Lake	10	12	4.70 GHz	1.7 GHz	12 MB Intel® Smart Cache	15W	DDR4	Intel®Iris Xe Graphics

Thông tin đặt hàng

Part no.	Description
MPPC-2L6C-12TH-19S-CT-I3	19" TFT LCD, 12801024, Capacitive Touch, with Intel® I3-1215U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-CT-I5	19" TFT LCD, 12801024, Capacitive Touch, with Intel® I5-1235U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-CT-I7	19" TFT LCD, 12801024, Capacitive Touch, with Intel® I7-1255U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-RT-I3	19" TFT LCD, 12801024, Resistive Touch, with Intel® I3-1215U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-RT-I5	19" TFT LCD, 12801024, Resistive Touch, with Intel® I5-1235U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-RT-I7	19" TFT LCD, 12801024, Resistive Touch, with Intel® I7-1255U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-NT-I3	19" TFT LCD, 12801024, Non-Touch, with Intel® I3-1215U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-NT-I5	19" TFT LCD, 12801024, Non-Touch, with Intel® I5-1235U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
MPPC-2L6C-12TH-19S-NT-I7	19" TFT LCD, 12801024, Non-Touch, with Intel® I7-1255U, 2GLAN, 6USB, 6COM, HDMI+DP, Power Adapter
