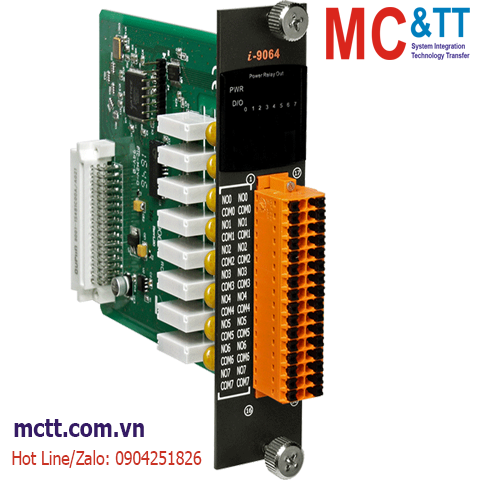

Module 8 kênh Power Relay ICP DAS I-9064 CR
Feature
• 8-channel Power Relay Output
• Form A Power Relay Output
• Configurable Power-on Value
• Configurable Safe Value
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75 °C
Introduction
The I-9064 module provides 8 Form A Relay Output channels, and is an ideal solution for high-power applications. The I-9064 includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
Specifications
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
8 x Power Relay |
| Relay Output |
| Channels |
8 (Form A) |
| Type |
Power Relay |
| Contact Material |
Gold-plated Silver Cadmium Alloy |
| Contact Rating |
5A @ 250 VAC (Resistive Load)
5A @ 30 VDC (Resistive Load) |
| Operate Time |
6 mS (Max.) |
| Release Time |
3 mS (Max.) |
| Electrical Endurance |
1 × 105 ops. |
| Mechanical Endurance |
2 × 107 ops. |
| Power on Value |
Yes |
| Safe Value |
Yes |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9064 CR |
8-ch Power Relay Output Module (RoHS) |
