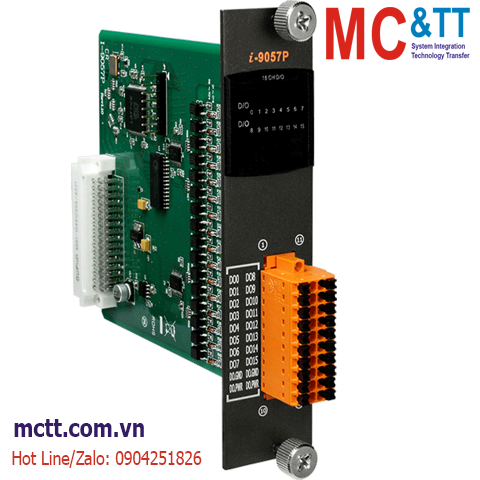

Module 16 kênh DO ICP DAS I-9057P CR
Feature
• 16-channel Open Collector Output
• Sink-type Digital Output
• Channel Status LED Indicators
• Up to 60 VDC Overvoltage Protection
• Overload Protection
• Short-circuit Protection
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-9057P module offers 16 digital output channels, each of which features Photocouple isolation and supports sink-type output using an open collector. In addition, 16 LED indicators are included to monitor the status of digital output channels. The I-9057P integrates overcurrent, over-voltage and short-circuits protections for industrial use. 4 kV ESD protection and 3750 Vrms intra-module isolation are also provided as standard.
Application
Energy Storage System
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
16 x DI |
| Digital Output |
| Channels |
16 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 VDC ~ +50 VDC |
| Load Current |
100 mA/Channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.1 A |
| Short-circuit Protection |
Yes |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 144 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9057P CR |
16-ch Isolated DO (Sink, NPN) Module (RoHS) |
