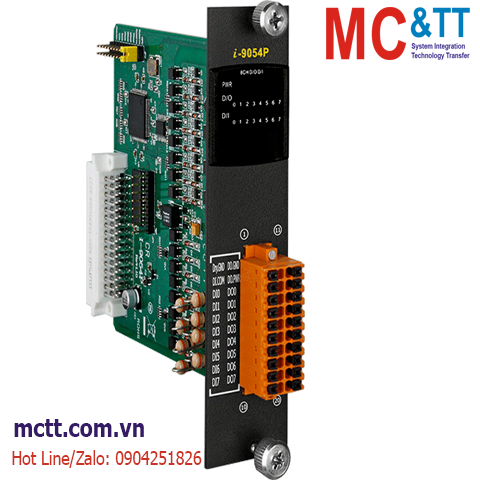

Module 8 kênh DI + 8 kênh DO ICP DAS I-9054P CR

Feature

• 8-channel Digital Input
• 8-channel Open Collector Output
• Sink-type Digital Output
• Channel Status LED Indicators
• 3750 VDC Intra-module Isolation

Introduction

The I-9054P offers 8 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters and 8 digital output channels, each of which features Photocouple isolation and supports sink-type output using an open collector.

The I-9054P provides 16 LED indicators that can be used to monitor the DIO channel status. 4 kV ESD protection and 3750 VDC intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.

Application

Specifications

Isolation
Intra-module Isolation 3750 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
16 x I/O
Digital Input
Channels 8
Type Dry + Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Dry: Close to GND
Wet: +19 VDC ~ +30 VDC
OFF Voltage Level Dry: Open
Wet: +11 VDC Max.
Response Speed OFF to ON: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable
ON to OFF: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable
Low Pass Filter Yes, Programmable
Effective Distance 500 M Max.
Digital Output
Channels 8
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +10 VDC ~ +50 VDC
Load Current 500 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.1 A
Short-circuit Protection Yes
Power
Consumption 1 W Max.
Mechanical
Dimensions (mm) 31 mm x 134 mm x 144 mm
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-9054P  8-channel Isolated DI and 8-channel Isolated DO Module (RoHS)
