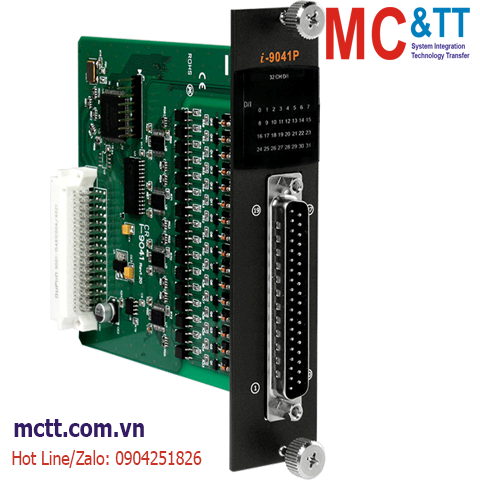

Module 32 kênh DO ICP DAS I-9041P CR
Feature
• 32-channel Open Collector Output
• Sink-type Digital Output
• Channel Status LED Indicators
• Up to 60 VDC Overvoltage Protection
• Overload Protection
• Short-circuit Protection
• 4 kV ESD Protection
• Optional Daughter Boards for Easy Field Wiring
Introduction
The I-9041P is a 32-channel sink-type digital output module. Each output channel is compatible with +10 VDC to +50 VDC signals, based on the external power supply. 32 LED indicators are provided to display the on/off status of every channel. Short circuit protection, overvoltage protection and overload protection are also included. The I-9041P features 3750 Vrms field to logic isolation and 4 kV ESD protection, but doesn’t provide channel-to-channel isolation. It can be paired with a daughterboard, such as the DN-37-381-A for easy wiring, or the DN-8K32R for relay output, to connect to a wide range of industrial switches and devices.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
32 x DO |
| Digital Output |
| Channels |
32 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 VDC ~ +50 VDC |
| Load Current |
100 mA/Channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.1 A |
| Short-circuit Protection |
Yes |
| Power |
| Consumption |
1.5 W Max. |
| Mechanical |
| Dimensions (mm) |
31 x 134 x 134 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9041P CR |
32-ch Isolated DO (Sink, NPN) Module (RoHS) |
