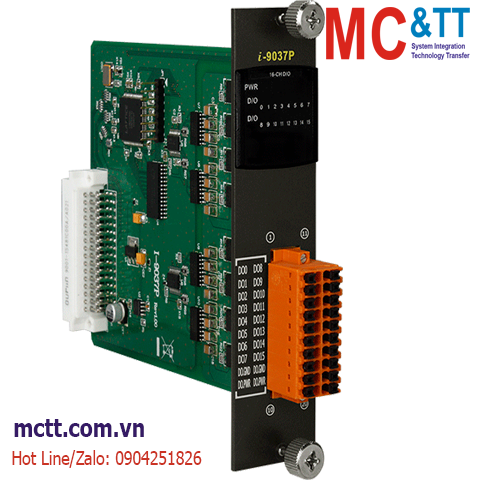

Module 16 kênh DO ICP DAS I-9037P CR
Feature
• 16-channel Source-type Digital Output
• Channel Status LED Indicators
• Photo Couple Isolation
• Short Circuit Protection
• 4 kV ESD Protection
• 3750 VDC Intra-Module Isolation
Introduction
The I-9037P provides 16 channels of digital output with photo couple isolation. Source-type output with short circuit protection and up to 700 mA load current are supported for each channel. There are options for confi guring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also included to enrich the noise protection ability for industrial environment.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
16 x DO |
| Digital Output |
| Channels |
16 |
| Type |
Isolated Open-Emitter |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+ 5 to +30 VDC |
| Load Current |
700 mA/Channel |
| Overvoltage Protection |
60 VDC |
| Short-circuit Protection |
Yes |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
31 mm x 134 mm x 144 mm |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-9037P CR |
16-ch Isolated DO (Source, PNP) Module (RoHS) |
