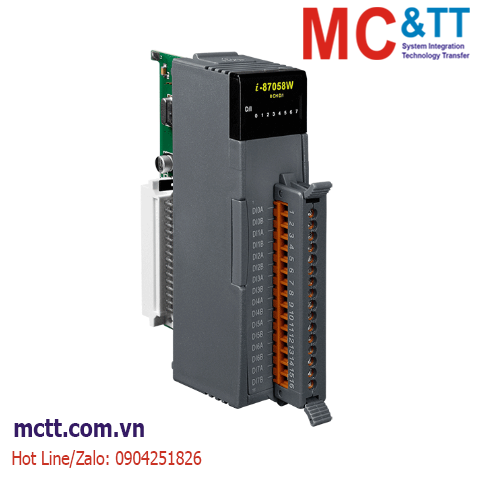

Module 8 kênh đầu vào số DI ICP DAS I-87058W-G CR
Feature
• 8-channel AC/DC Digital Input
• Low Pass Filter
• Photocouple Isolation
• All Digital Channels Input can be used as Counter
• 5000 Vrms Intra-module Isolation
• 2 kV Channel-to-Channel Isolation
• Overvoltage Protection
Introduction
The I-87058W is an 8-channel AC/DC digital input module with high voltage isolation. The ON voltage level for the module range can be between 80 ~ 250 VAC/VDC, and all DI channels are also able to be used as 16-bit counters. The I-87058W include 8 LED indicators that can be used monitor DI channel status. 4 kV ESD protection and 5000 Vrms intra-module isolation are standard.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
5000 Vrms |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Digital Input |
| Low Pass Filter |
Yes |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Wet Contact, Differential |
| ON Voltage Level |
80 ~250 VAC
80 ~ 250 VDC |
| OFF Voltage Level |
30 VAC/VDC Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
68 KΩ, 2 W |
| Overvoltage Protection |
300 VAC/VDC Max. |
| Channel-to-Channel Isolation |
Yes, 2 kV |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
0.3 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87058W-G CR |
8-ch Isolated DI (80~250 VAC/VDC) Module (RoHS) |
