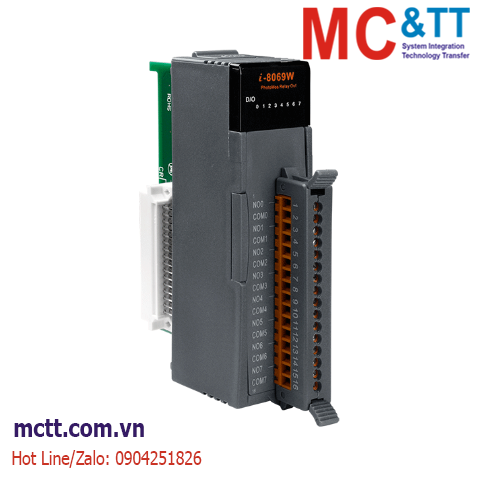

Module 8 kênh PhotoMOS Relay ICP DAS I-8069W-G CR
Feature
• 8 PhotoMos Relay Outputs
• 4 kV ESD Protection
• No Arcing, No Bounce, and No Switching Noise
• Optical Isolation
Introduction
Both the I-8069W features eight Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance, and both the I-8069W include eight LED indicators that are used to display channel status as well as providing 4 kV ESD protection.
Application
• All Types of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| Isolation |
| Intra-module Isolation |
1500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Digital Output |
| Load Voltage |
60 VDC Max. @ DC/AC |
| Load Current |
60 VDC/1.0 A @ -25 ~ +40 ℃
60 VDC/0.8 A @ +40 ~ +60 ℃
60 VDC/0.7 A @ +60 ~ +75 ℃ |
| Relay Output |
| Channels |
8 (Form A) |
| Type |
PhotoMOS Relay |
| Contact Rating |
Countinous Load Current: 1 A |
| Power |
| Consumption |
0.6 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8069W-G CR |
8-ch Form A PhotoMOS Relay Module (RoHS) |
