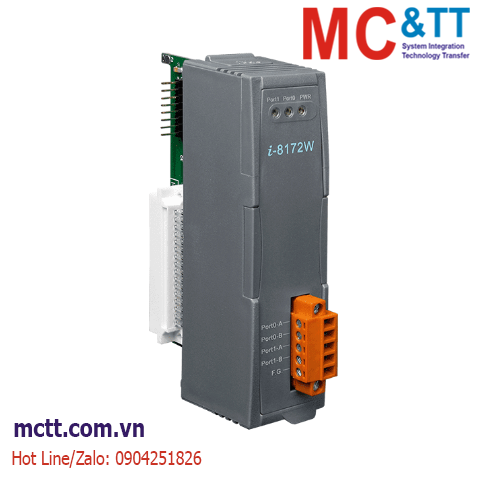

Module 2 cổng FRnet ICP DAS I-8172W
Feature
• Reduced Wiring two-wire cabling
• Innovative token-stream communication technology
• Real-time I/O synchronization capabilities
• Fixed cyclic scan time for deterministic control
• High speed distributed I/O control capabilities
• Memory-mapping I/O programming
• Easily programmable
• No software overhead for protocol processing
Introduction
The ICP DAS XP-8000, WP-8000, LP-8000, I-8000 and iP-8000 series modules are all Programmable Automation Controller (PAC) that use an I-8172W FRnet communication module to implement an FRnet network.
The I-8172W is an isolated FRnet communication controlers. The I-8172W has two FRnet ports, each FRnet port can control a maximum of 16 communication nodes, numbered from 0 to 15. Each single node of the remote I/O module can control a maximum of 16 DI/DO channels. In other words, each FRnet port can control a maximum of 128 DI and 128 DO channels
Application
• Industrial Automation
• Remote I/O control
• Building Automation
• Parking Lot Management
Specifications
| Isolation |
| Intra-module Isolation |
1500 VAC |
| LED Indicators |
| Status |
1 x Power
2 x Communication |
| FRnet |
| Ports |
2 |
| Wire Cable |
Belden 8941 (2P twisted-pair cable),
When different cables are used, the transmission distance may change |
| Transfer Distance |
Max. 400 m for speed 250 Kbps (Default); Max. 100 m for speed 1 Mbps |
| Cyclic Time |
2.88 ms for speed 250 Kbps (Default)
0.72 ms for speed 1 Mbps |
| Connection |
Removable 5-Pin Terminal Block |
| Power |
| Consumption |
0.12A @ 5V = 6W ,+/- 5% For Hardware version 1.2 |
| Mechanical |
| Dimensions (mm) |
32 x 90 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8172W |
2-port FRnet Module |
