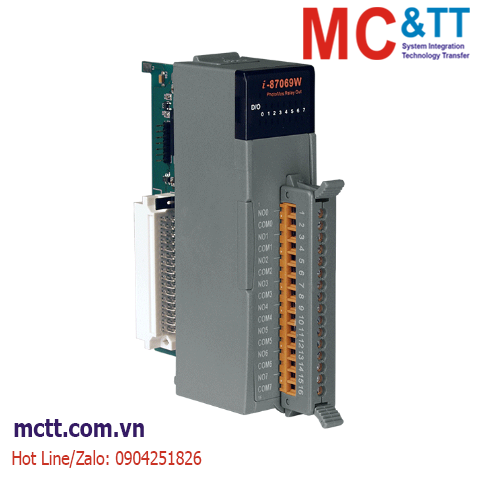

Module 8 kênh PhotoMOS Relay ICP DAS I-87069W-G CR
Feature
• 8 PhotoMos Relay Outputs
• 4 kV ESD Protection
• No Arcing, No Bounce, and No Switching Noise
• Photocouple Isolation
• Embedded Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
Introduction
I-87069W features eight Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance. There are also no arcing, no bounce, and no switching noise for the PhotoMOS relay. There are options for configuring power-on and safe digital output values, and both the I-87069W include eight LED indicators that are used to display channel status as well as providing 4 kV ESD protection.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
5000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Relay Output |
| Channels |
8 (Form A) |
| Type |
PhotoMOS Relay |
| Contact Rating |
Operating Load Voltage Range: 350 V (AC peck or DC)
Countinous Load Current: 0.13 A
Peak Load Current: 0.4 A
Output Off State Leakage Current: 1 μA |
| Operate Time |
2 ms (Max.) |
| Release Time |
1 ms (Max.) |
| Electrical Endurance |
No Arcing, No Bounce, and No Switching Noise |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
DCON |
| Power |
| Consumption |
0.3 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 115 x 102 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-87069W-G CR |
8-ch PhotoMOS Relay Module (0.13A Rating Current) (RoHS) |
