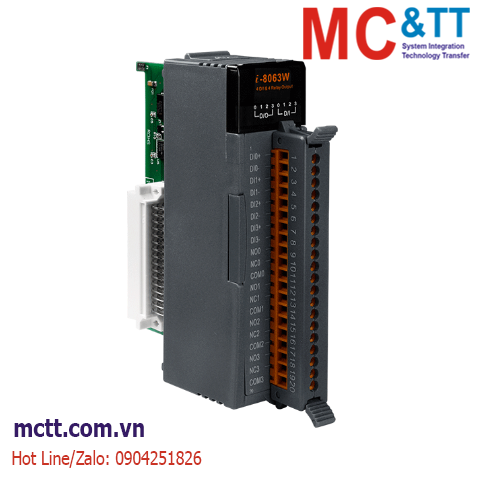

Module 4 kênh đầu ra Relay + 4 kênh DI ICP DAS I-8063W-G CR
Feature
• 4-channel Digital Input and 4-channel Relay Output
• Form C Power Relay Output
• Sink-type and Source-type Digital Input Channels
Introduction
The I-8063W module provides 4 Isolated Digital Input channels and 4 Form C Relay Output channels. In addition, either sink-type or source-type Digital Input can be selected via the wire connections. The I-8063W includes 8 LED indicators that can be used to monitor the status of the Digital Input and Relay Output, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation |
| Intra-module Isolation |
3750 Vrms |
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
8 x I/O |
| Digital Input |
| Channels |
4 Differential |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+10 ~ +30 VAC |
| OFF Voltage Level |
+4 VAC Max. |
| Input Impedance |
3 KΩ, 0.5 W |
| Relay Output |
| Channels |
6 (Form C) |
| Type |
Power Relay |
| Contact Rating |
5 A (NO) /3 A (NC) @ 30 VDC;
5 A (NO) /3 A (NC) @ 277 VAC |
| Operate Time |
10 ms Max. |
| Release Time |
5 ms Max. |
| Electrical Endurance |
500,000 Min. @ 30 VDC @ 2 A, Resistive |
| Mechanical Endurance |
100,000,000 Min. |
| Power |
| Consumption |
2 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8063W-G CR |
4-ch Isolated DI (Wet) and 4-ch Form C Power Relay Module (RoHS) |
