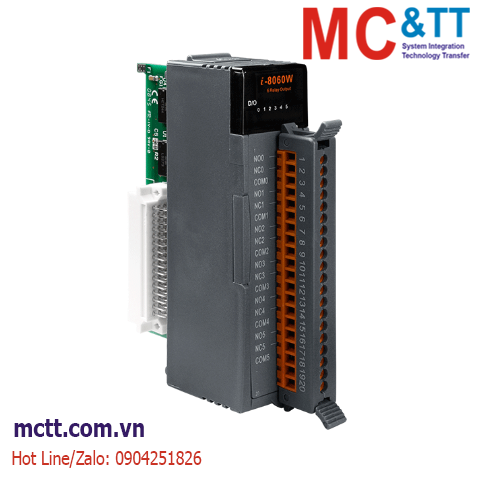

Module 6 kênh đầu ra Relay ICP DAS I-8060W-G CR
Feature
• 6-channel Relay Output
• Form C Power Relay Output
Introduction
The I-8060W module provides 6 Form C Relay Output channels. The I-8060W includes 6 LED indicators that can be used to monitor the status of the Relay Output. ±4 kV ESD protection are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
± 4 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
6 x I/O |
| Digital Output |
| Load Current |
2 A @ 23 °C |
| Relay Output |
| Channels |
6 (Form C) |
| Type |
Power Relay |
| Contact Rating |
0.5 A @ 125 VAC;
0.25 A @ 250 VAC;
2 A @ 30 VDC |
| Operate Time |
10 ms Max. |
| Release Time |
5 ms Max. |
| Electrical Endurance |
500,000 Min. @ 30 VDC @ 2 A, Resistive |
| Mechanical Endurance |
100,000,000 Min. |
| Power |
| Consumption |
1 W Max. |
| Mechanical |
| Dimensions (mm) |
30 x 102 x 115 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8060W-G CR |
6-ch Form C Power Relay Module (RoHS) |
