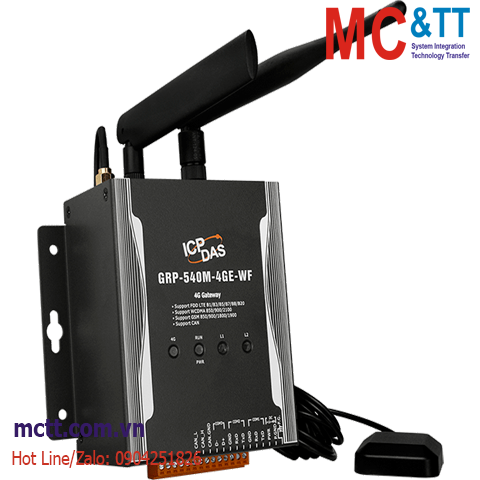

Modem/Router công nghiệp GPRS/WCDMA (3G)/LTE(4G) + Ethernet/RS-232/485/CAN/Wi-Fi ICP DAS GRP-540M-4GE-WF CR
Feature
- Support 4G FDD LTE.
- Support 3G WCDMA.
- Support 2G GSM.
- 10/100 Base-TX compatible Ethernet controller.
- Support CAN.
- Support Wi-Fi .
- GPS : 32 channels with All-In-View tracking.
- Support Micro SD card.
- Provide 4G Router function.
- Provide port mapping function.
- Serial Port to 4G Gateway Function.
- High reliability in harsh environments.
- DIN-Rail mountable.
Introduction
The GRP-540M-4GE-WF provided by ICP DAS is a 4G gateway for Ethernet, Wi-Fi, serial port, and CAN. With GPS function, the GRP-540M-4GE-WF can also be a GPS tracking system. It can be used in M2M application fields to transfer the remote I/O, Modbus data or video of the camera via 4G/3G/2G. Within the high performance CPU, the GRP-540M-4GE-WF can handle a large of data and are suit for the Harsh Industrial environment. The GRP-540M-4GE-WF have 4G module, Ethernet interface, Wi-Fi interface, and GPS module.
Application
-
Serial Port to 4G Gateway Application
Specifications
| CPU Module |
| CPU |
ARM CPU |
| EEPROM |
16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Storage Expansion |
SD Card (Max. 32GB SDHC) |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x RUN/PWR
1 x 4G
1 x L1
1 x L2 |
| 2G System |
| Data Transmission Rate |
GPRS
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band |
850/900/1800/1900 MHz |
| Coding Schemes |
CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot |
GPRS class 12; GPRS station class B |
| Power Class |
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900 MHz) |
| 3G System |
| Data Transmission Rate |
DC-HSPA+
Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps |
| Frequency Band |
WCDMA 850/900/2100 MHz |
| Power Class |
Class 3 (250mW @ WCDMA/HSPA) |
| 4G System |
| Data Transmission Rate |
LTE
Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps |
| Frequency Band |
FDD LTE: B1/B3/B5/B7/B8/B20 |
| GPS/GNSS |
| Protocol |
NMEA 0183 |
| Support Channels |
32 |
| COM Ports |
| Ports |
1 x RS-232 (Console, Debug)
1 x RS-232
1 x RS-485 (3000VDC Isolated) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| CAN |
| Signal Line |
CAN Bus (CAN_H, CAN_L) |
| Power |
| Consumption |
4.8W ( 200 mA @ 24 VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
117 x 126 x 58 (W x L x H) |
| Installation |
DIN-Rail / Screw |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GRP-540M-4GE-WF CR |
Ethernet/Wi-Fi/Serial/CAN to 4G Gateway. (RoHS) (Asia Only, Except China) |
