Module quạt làm mát 1U 2 Fan ICP DAS AFAN-02 CR
Feature
- Support 2 fan modules (hot-swap)
- Individual fault LED for each fan
- DO Relay alarm for any fan failure or power loss
- Failure of any fan does not affect others
- Overvoltage protection (5A fuse)
Introduction

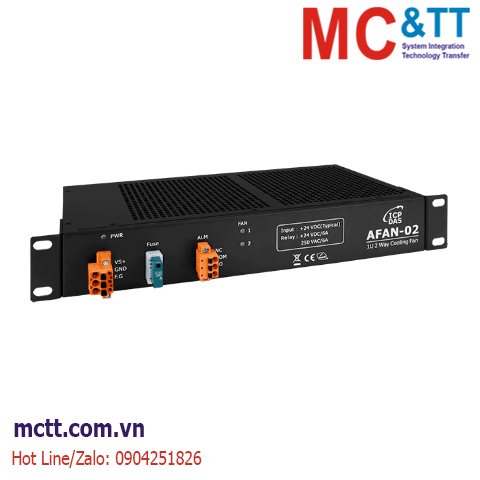

AFAN-02 is a 1U general-purpose fan module developed by ICP DAS. It is designed with many advantages for the thermal management of computer room or industrial equipment. The main features are included as below.
-
Fan Modules: Equipped with 2 fan modules and provides active air convection, which effectively reduces the operating temperature of the equipment and improves the stability and safety of the system.
-
Power supply and protection: 24VDC power supply with built-in 5A fuse overvoltage protection to ensure the safety of equipment operation.
-
Monitoring and Alarm: Built-in fan fault indicator and DO Relay alarm output allow users to monitor the fan operation status through the remote monitoring center's DI connector, which helps to detect and handle fan faults in time to avoid system damage due to overheating.
-
Hot-swappable support: Supports hot-swappable replacement of fan modules in case of failure without shutting down the system, which further improves system maintenance efficiency.
Application
Suitable for small server cabinets.
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±500 V for Signal ,±1KV for Power |
| ESD (IEC 61000-4-2) |
±4KV Contact, ±8KV on Air |
| Surge (IEC 61000-4-5) |
±1KV for power line |
| LED Indicators |
| Status |
1 LED as power indicator & 2 LED as status indicator |
| Relay Output |
| Contact Rating |
6A 250 VAC /30 VDC |
| Operate Time |
≦8ms |
| Release Time |
≦4ms |
| Electrical Endurance |
3 x 10^4 ops.
(Test Conditions : Resistive load, 85℃, 1s on, 9s off) |
| Mechanical Endurance |
1 x 10^7 ops. |
| Power |
| Input Range |
24 VDC±10% |
| Consumption |
5.76W (0.24A @ 24 VDC) |
| Mechanical |
| Dimensions (mm) |
299 x 144 x 45 mm |
| Installation |
Wall-mounted |
| Environment |
| Operating Temperature |
-10℃ ~ +70℃ |
| Storage Temperature |
-30℃ ~ +80℃ |
| Humidity |
10 to 90% RH, Non-condensing |
Datasheet
Documents
Ordering Information
| AFAN-02 CR |
1U 2 Way Cooling Fan Module (RoHS) |
