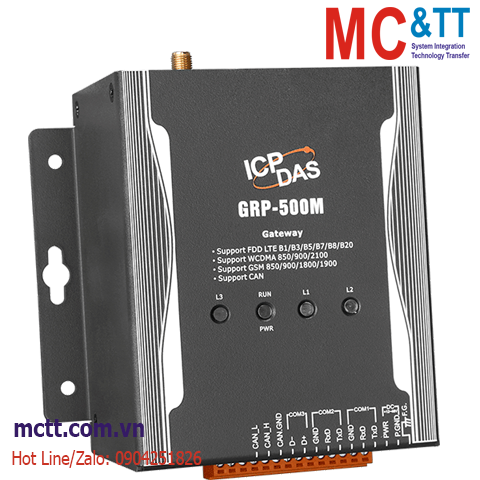

Modem/Router công nghiệp GSM/WCDMA(3G)/LTE(4G) + Ethernet/Serial/CAN ICP DAS GRP-500M CR
Feature
- Intelligent multiport serial gateway
- Intelligent Remote Terminal Unit (RTU)
- Support Ethernet, Serial port and CAN bus.
- Support Modbus RTU/TCP protocol
- Provide NAT and port forwarding function
- 4G / NB Modem (option)
- GPS function (option)
- High reliability in harsh environments.
- DIN-Rail mountable.
Introduction
The GRP-500M provided by ICP DAS is a gateway for Ethernet, serial port, and CAN. The GRP-500M can be used for wireless data transmission and other functions through its optional 4G / NB communication module. With the optional GPS module, the GRP-500M can also be used as a GPS tracking system for vehicle management or maritime system.
It can be used in M2M application to transmit remote I/O, Modbus data, or camera video. Within the high-performance CPU, the GRP-500M can process large amounts of data and is suitable for harsh industrial environments.
Application
-
Serial Port to 4G / Ethernet Gateway Application
-
NB-IoT Gateway
Specifications
| CPU Module |
| CPU |
ARM CPU |
| EEPROM |
16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles) |
| Storage Expansion |
SD Card (Max. 32GB SDHC) |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x RUN/PWR
1 x L1
1 x L2
1 x L3 |
| COM Ports |
| Ports |
1 x RS-232 (Console, Debug)
1 x RS-232
1 x RS-485 (3000VDC Isolated) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100Base-T(X) |
| CAN |
| Signal Line |
CAN Bus (CAN_H, CAN_L) |
| Power |
| Input Range |
+10 VDC ~ +48 VDC |
| Consumption |
4.8W ( 200 mA @ 24 VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
117 x 126 x 58 (W x L x H) |
| Installation |
DIN-Rail / Screw |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GRP-500M CR |
Ethernet/Serial/CAN to 4G Gateway. (RoHS) |
