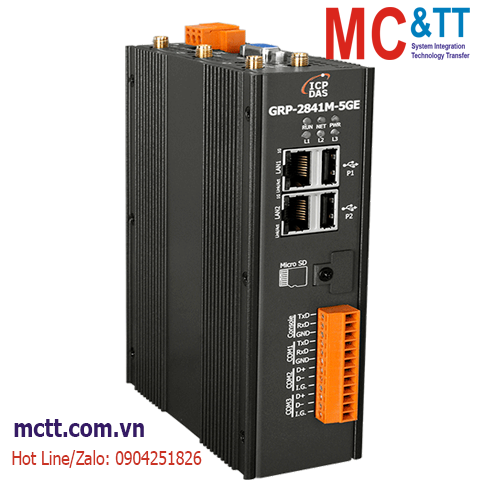

Bộ điều khiển điện toán biên 5G (Edge Computing Controller) ICP DAS GRP-2841M-5GE CR
Feature
- Cortex-A53 CPU, 1.6 GHz, quad-core
- 1 GB LPDDR4 RAM and 8 GB eMMC Flash
- Linux Kernel 4.14.98
- Provide NAT and port forwarding function
- Intelligent Remote Terminal Unit (RTU)
- Intelligent multiport serial gateway
- Built-in 5G wireless module
- Support GPS/GLONASS/BeiDou (Compass)/Galileo
- Wi-Fi. Station & AP mode (option)
- Support Node-RED (flow-based programming tool)(option)
- 10/100/1000M Two Ethernet Ports
- 4 Serial Ports (RS-232/485)
Introduction
The GRP-2841M-5GE provided by ICP DAS is a 5G Edge Computing Controller. GRP-2841M-5GE can become a wireless router through its built-in 5G communication module, providing Ethernet and Wi-Fi (option) data transmission. It also has built-in GPS/GNSS functionality and can also be used as a GPS tracking system for vehicle management or marine systems. GRP-2841M-5GE supports Node-RED (flow-based programming tool), Users can create user control logic for field requirements through Node-Red. The GRP-2841M-5GE can process a large amount of data in a high-performance CPU and is suitable for harsh industrial environments.
Application
-
Serial Port to 4G Gateway Application
Specifications
| Software |
| OS |
Linux Kernel 4.14.98 |
| Service |
SSH, Web, SNMP Server, SMTP, DDNS |
| Function |
NAT and port forwarding function
Remote Terminal Unit (RTU)
Multiport serial gateway
5G wireless router (option) |
| Main Unit |
| CPU |
Cortex-A53 CPU, 1.6 GHz, quad-core |
| System Memory |
1 GB LPDDR4 SDRAM |
| Storage |
8 GB eMMC Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
64 KB FRAM;
128 KB MRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates,day of week, month, year |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x PWR
1 x NET
1 x RUN
1 x L1
1 x L2
1 x L3 |
| 3G System |
| Frequency Band |
WCDMA
B1/B2/B3/B4/B5/B6/B8/B19 |
| 4G System |
| Frequency Band |
FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/
B30/B32/B66/B71
TDD: B34/B38/B39/B40/B41/B42/B48 |
| 5G System |
| Frequency Band |
n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 |
| COM Ports |
| Ports |
1 x RS-232(Console,Debug)
1 x RS-232
2 x RS-485(2500VDC,Isolated) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-T(X) |
| Power |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
9.6 W (0.4 A @ 24 VDC) |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
44 x 164 x 129 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +70 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GRP-2841M-5GE CR |
5G Edge Computing Controller (RoHS)(Asia Only) |
