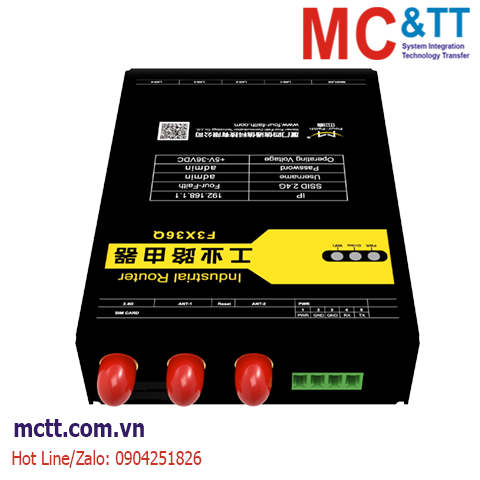

Router công nghiệp 4G (LTE) 1 cổng WAN + 4 cổng LAN + WiFi Four-Faith F3X36Q

Chia sẻ:
Mã sản phẩm: F3X36Q
Thương hiệu: Four-Faith
Tình trạng:

4G LTE&WCDMA&GPRS WiFi Router

Liên hệ
Mô tả

Router công nghiệp 4G (LTE) 1 cổng WAN + 4 cổng LAN + WiFi Four-Faith F3X36Q

Industrial WiFi router F3X36Q is an IoT wireless communication router. It is using public cellular network GPRS/CDMA/WCDMA/EVDO/LTE to provide long distance, wireless and large data transmission function for users.

Industrial WiFi router F3X36Q uses the high-performance industrial-grade 32-bit CPU and wireless module, with the embedded real-time operating system as the software support platform. It provides a RS232 (or RS485), 4 Ethernet LAN, 1 Ethernet WAN and a WIFI, can be connected to the serial device, Ethernet devices and WIFI devices at the same time, achieve data pass-through function.

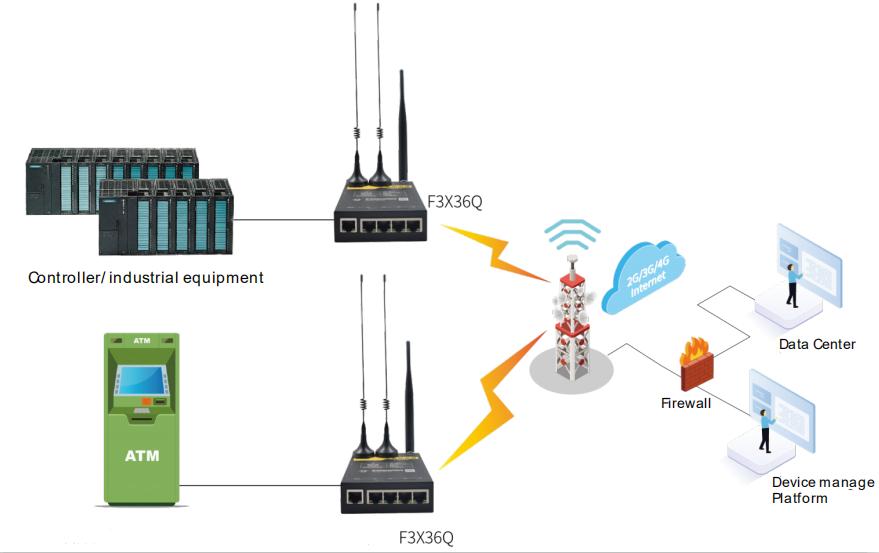

Industrial WiFi router F3X36Q has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical and other related fields.

Industrial WiFi router F3X36Q

Tính năng

  • High-performance industrial-grade CPU
  • High-performance industrial-grade wireless communication module
  • Metal casing, IP30 protection level, suitable for most industrial control applications
  • Wide range power input (DC 5~36V)
  • Support various WAN connection type, including static IP, DHCP, PPPOE, 2.5G/3G/4G
  • Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.
  • Support 802.11 b / g / n WIFI network, support WIFI AP, AP Client, Bridge and various
  • Support APN/VPDN.
  • Support multi-way DHCP server and DHCP client, DHCP bound with MAC address, DDNS, firewall, NAT, DMZ, QoS, traffic statistics, real-time transfer rate monitoring

  • Support various network protocols including TCP/IP, UDP, FTP (optional), HTTP, etc.

Thông số kỹ thuật

Items Contents
Cellular Module Industrial grade wireless module
Standard and Band Support:FDD-LTE, TD-LTE, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps
TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps
TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps
DC-HSPA+: Downstream rate 42Mbps, uplink rate 5.76 Mbps
HSPA+: Downstream rate 21Mbps, uplink rate 5.76 Mbps
UMTS: 384Kbps
Transmit Power <23dBm
Sensitivity <-97dBm

WIFI Specification

Items Contents
Standard and Band IEEE802.11b/g/n
Bandwidth IEEE802.11b/g: 54Mbps (Maximum)
IEEE802.11n: 144Mbps (Maximum)
Security Support WEP, WPA, WPA2 encrypt methods, optional WPS function
Transmit Power 15 ± 2dBm
Sensitivity < -72dBm @ 54Mbps
CPU Industrial 32 bits CPU
FLASH 16MB; 128MB(Optional)
DDR2 128MB
WAN 1 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial 1 x RS232/485 serial interface with built-in 15KV ESD
Data bits:5, 6, 7, 8 bits
Stop bits:1, 1.5 (optional), 2 bits
Error detection: none, even parity, odd parity, SPACE (Optional) and MARK (Optional)
Serial Port Rate: 2400~115200bits/s
Indicator “PWR”, “Online”, “WIFI”
Antenna Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM Standard SIM card slot, support 1.8V/3V SIM/UIM card, built-in 15KV ESD, support dual-SIM card (Optional)
Reset Restore the router to its original factory default settings
Power Input Standard Power: DC 12V/1.5A

Power Range: DC 5~36V

Standard 3-PIN power jack, reverse-voltage and over-voltage protection

Power Consumption

Standby: 95~135mA@12VDC
Communicating: 165~220mA@12VDC

Sleep: <150uA@10.8VDC (<30uA@10.8VDC, close BLE module)

Physical Characteristic Iron, providing IP30 protection

Weight : 345g

Dimension (W x H x D): 127x89.5x30mm (excluding antennas and mountings)

Environmental Limits Operating Temperature: -35~+75ºC (-22~+167℉)
Storage Temperature: -40~+85ºC (-40~+185℉)
Operating Humidity: 95% ( unfreezing)

Thông tin đặt hàng

Model Description WAN LAN Cellular
Antenna
WIFI
Antenna
SIM/
UIM
F3X36Q LTE WIFI Router 1 4 2 1 1
F3X36Q-SIM2 LTE WIFI Router 1 4 2 1 2
