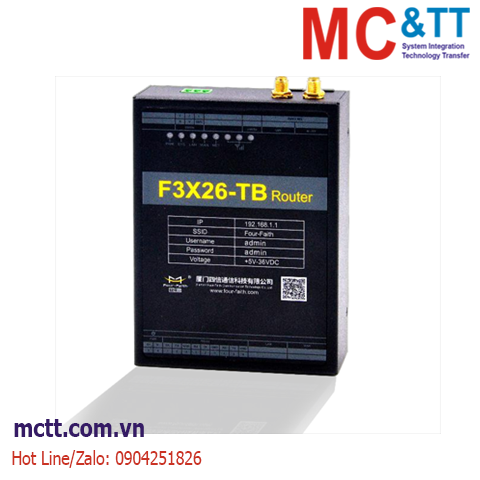

Router công nghiệp 4G (LTE) 1 cổng WAN + 1 cổng LAN + WiFi Four-Faith F3X26-TB
F3X26-TB Industrial Router is an IoT wireless communication router. It is using the public cellular network GPRS/CDMA/WCDMA/EVDO/LTE to provide long distance, wireless and large data transmission function for users. It has been widely used in the M2M industry of the IoT industrial chain, such as smart grid, intelligent transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, intelligent building, fire protection, public safety, environmental protection, meteorology, digital medical, telemetry, agriculture, forestry, water, coal, petrochemical, and other related fields
Tính năng
- Support dual-link intelligent switching function (Dual-SIM version)
- Support LTE and wired WAN dual-link intelligent switching backup function (Optional)
- Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS, etc.
- Support upgrade software from the local and remote maintenance Support MAC address clone, PPPoE server
- Support SPI firewall, VPN traversal, access control, URL filtering, etc.
- Support 802.11 b / g / n WIFI network Support WIFI AP, AP Client, Bridge, and various working mode (Optional)
- WIFI support variety types of encryptions such as WEP, WPA and WPA2.
- Support various DDNS
- Support APN/VPDN
- Support NTP
Thông số kỹ thuật
| Cellular Specification |
| Item |
Content |
| Standard & Band |
Support Full-NetCom: LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE |
| Bandwidth |
FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps
TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps
TD-HSPA+: Downstream rate 4.2Mbps, uplink rate 2.2Mbps
DC-HSPA+: Downstream rate 42Mpbs, uplink rate 5.76 Mbps
HSPA+: Downstream rate 21Mpbs, uplink rate 5.76 Mbps
UMTS: 384Kbps |
| Transmit Power |
<23dBm |
| Sensitivity |
<-97dBm |
WIFI Specification
| Item |
Content |
| Standard & Band |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (Maximum) |
| Security |
IEEE802.11n: 144Mbps (Maximum) |
| Transmit Power |
Support WEP, WPA, WPA2 encrypt methods, optional WPS function |
| Sensitivity |
15±2dBm |
| CPU |
Industrial 32 bits CPU |
| FLASH |
16MB(Extendable to 64MB) |
| DDR2 |
128MB (optional for 256MB) |
| WAN |

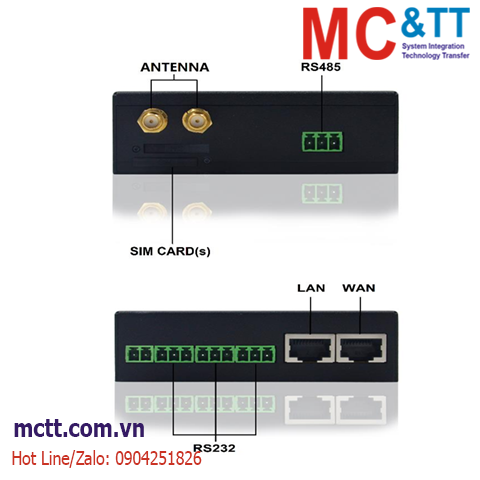

1 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
1 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
3 x RS232, 1 x 485 serial interface with built-in 15KV ESD Data bits:5, 6, 7, 8 bits
Stop bits:1, 1.5 (optional), 2 bits
Error detection: none, even parity, odd parity, SPACE (optional) and MARK (optional) |
|
| Indicator |
“PWR”, “SYS”, “LAN”, “WAN”, “NET”, Signal Indicator |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Reset |
Restore the router to its original factory default settings |
| Power Input |
Standard Power: DC 12V/1.5A
Power Range: DC 5~36V
Standard 3-PIN power jack, reverse-voltage and over-voltage protection |
| Power Consumption |
Standby: 95~135mA@12VDC
Communicating: 165~220mA@12VDC |
| Physical Characteristic |
Metal casing, IP30 protection level, suitable for most industrial control applications
Weight : 320g
Dimension (W x H x D): 126mm x 89mm x 30mm (excluding antennas and mountings) |
| Environmental Limits |
Operating Temperature: -35~+75ºC (-22~+167℉)
Storage Temperature: -40~+85ºC (-40~+185℉)
Operating Humidity: 95% ( unfreezing) |
Thông tin đặt hàng
| Model |
Description |
WAN |
LAN |
Cellular
Antenna |
WIFI
Antenna |
SIM/
UIM |
| F3X26-TB-FL |
FDD/TDD-LTE WIFI Router |
1 |
1 |
1 |
1 |
1 |
| F3X26-TB-SIM2 |
FDD/TDD-LTE WIFI Router |
1 |
1 |
1 |
1 |
2 |
