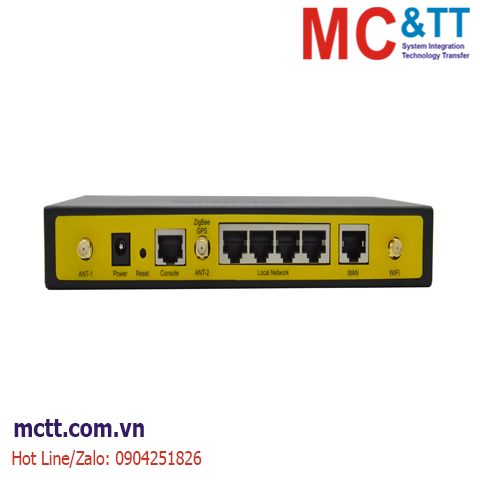

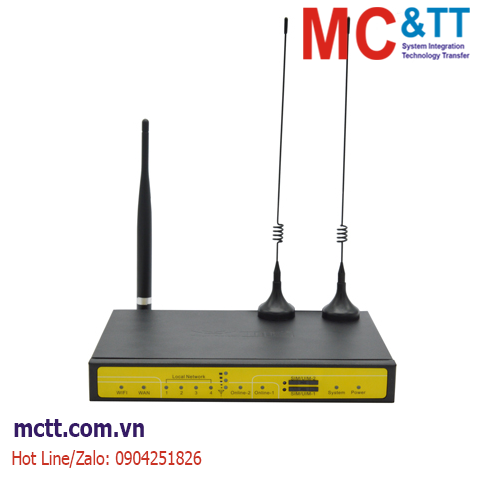

Router công nghiệp LTE Dual SIM (Dual-Module) WiFi Four-Faith F3946
F3946 sử dụng CPU 32 bit công nghiệp công suất cao và hệ điều hành thời gian thực được nhúng. Hỗ trợ cổng RS-232 (hoặc RS-485/422), 4 cổng Ethernet có thể kết nối thuận tiện với các thiết bị nối tiếp, Ethernet, wifi hiện có của mình chỉ với cấu hình cơ bản.
Sản phẩm được sử dụng rộng rãi trên các lĩnh vực M2M, chẳng hạn như giao thông thông minh, lưới điện thông minh, tự động hóa công nghiệp, đo xa, POS, quan trắc, giám sát môi trường, v.v.
Tính năng
- High-performance industrial-grade CPU
- High-performance industrial-grade wireless communication module
- Metal casing, IP30 protection level, suitable for most industrial control applications
- Wide range power input (DC 5~36V)
- LTE Industrial Router support multiple WAN access methods
- LTE Industrial Router support static IP, DHCP, L2TP, PPTP, PPPOE,2.5G/3G/4G
- LTE Industrial Router support APN/VPDN
- Schedule Online and Offline
- LTE Industrial Router support multiple online trigger ways, including SMS, ring, and data.
- LTE Industrial Router support DHCP server and client, firewall, NAT, DMZ host, URL block, QOS, etc.
- LTE Industrial Router support TCP/IP, UDP, FTP (Optional), and HTTP
- LTE Industrial Router support APN/VPDN
Thông số kỹ thuật
| Cellular Module |
Industrial cellular module |
| Standard and Band |
Main module:
- LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional)
- LTE TDD 2600/1900/2300MHz(Band 38/39/40) (800/1400/1800MHz(Band27/61/62)(optional)
- DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8)
- TD-SCDMA 2010/1900MHz(A/F frequency band,Band 34/39)
- CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),EVDO Rev B 800/1900MHz (optional) 450MHz (optional)
- EDGE/GPRS/GSM 850/900/1800/1900MHz
Standby module :
- LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional)
- LTE TDD 2600/1900/2300MHz(Band 38/39/40) (800/1400/1800MHz(Band27/61/62)(optional)
- DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8)
- TD-SCDMA 2010/1900MHz(A/F frequency band,Band 34/39)
- CDMA2000 1X EVDO Rev A 800MHz,800/1900MHz(optional),EVDO Rev B 800/1900MHz (optional) 450MHz (optional)
- EDGE/GPRS/GSM 850/900/1800/1900MHz
|
| Bandwidth |
LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
LTE TDD: Download speed 61Mbps, Upload speed 18Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps
EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps |
| TX power |
<23dBm |
| RX sensitivity |
<-97dBm |
WIFI Specification
| Item |
Content |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc. WPS (optional) |
| TX power |
20dBm(11n),24dBm(11g),26dBm(11b) |
| RX sensitivity |
<-72dBm@54Mpbs |
| CPU |
Industrial 32 bits CPU |
| FLASH |
16MB(Extendable to 64MB) |
| DDR2 |
128MB |
| WAN |
1 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 x RS-232 (or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps |
| Indicator |
“Power”, “System”, “Online-1”, “Online-2″, ” Local Network “, “WAN”, “WIFI”, “Signal Strength” |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Reset |
Restore the router to its original factory default settings |
| Power Input |
Standard Power: DC 12V/1.5A
Power Range: DC 5~36V
Standard 3-PIN power jack, reverse-voltage and over-voltage protection |
| Physical Characteristic |
Iron, providing IP30 protection
Weight : 810g
Dimension (W x H x D): 207x135x28 mm |
| Environmental Limits |
Operating Temperature: -35~+75ºC (-22~+167℉)
Storage Temperature: -40~+85ºC (-40~+185℉)
Operating Humidity: 95% ( unfreezing) |
Thông tin đặt hàng
| Model |
Description |
WAN |
LAN |
Cellular
Antenna |
WIFI
Antenna |
SIM/
UIM |
| F3946 |
Dual-SIM, Dual-Module Wifi ROUTER |
1 |
4 |
1 |
1 |
2 |
