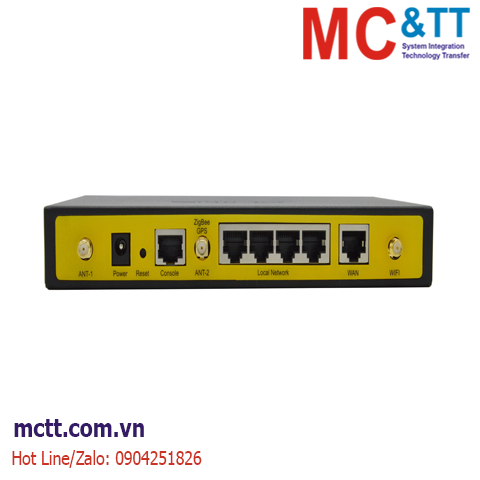

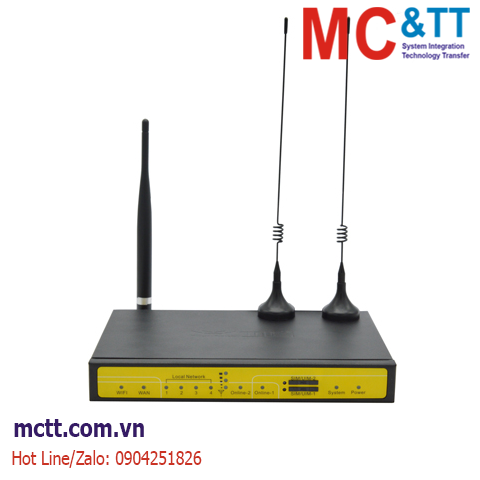

Router công nghiệp LTE Dual SIM WiFi Four-Faith F3846
F3846 LTE/WCDMA Dual-SIM WIFI ROUTER is a kind of cellular terminal device that provides large data transmission function by public LTE/WCDMA network. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect devices to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on
Tính năng
- High-performance industrial-grade CPU
- High-performance industrial-grade wireless communication module
- Metal casing, IP30 protection level, suitable for most industrial control applications
- Wide range power input (DC 5~36V)
- LTE Industrial Router support multiple WAN access methods
- LTE Industrial Router support static IP, DHCP, L2TP, PPTP, PPPOE,2.5G/3G/4G
- LTE Industrial Router support APN/VPDN
- Schedule Online and Offline
- LTE Industrial Router support multiple online trigger ways, including SMS, ring, and data.
- LTE Industrial Router support DHCP server and client, firewall, NAT, DMZ host, URL block, QOS, etc.
- LTE Industrial Router support TCP/IP, UDP, FTP (Optional), and HTTP
- LTE Industrial Router support APN/VPDN
Thông số kỹ thuật
|
Cellular Module |
Industrial cellular module |
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100MHz(optional)
DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/900/2100MHz, 800/850/1900/2100MHz(optional)
EDGE/GPRS/GSM 850/900/1800/1900MHz
GPRS CLASS 10
GPRS CLASS 12 |
|
Bandwidth |
LTE FDD: Download speed 100Mbps, Upload speed 50Mbps
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps |
|
TX power |
<23dBm |
|
RX sensitivity |
<-97dBm |
WIFI Specification
| Item |
Content |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc. WPS (optional) |
| TX power |
20dBm(11n),24dBm(11g),26dBm(11b) |
| RX sensitivity |
<-72dBm@54Mpbs |
| CPU |
Industrial 32 bits CPU |
| FLASH |
16MB(Extendable to 64MB) |
| DDR2 |
128MB |
| WAN |
1 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4 x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 x RS-232 (or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps |
| Indicator |
“Power”, “System”, “Online-1”, “Online-2″, ” Local Network “, “WAN”, “WIFI”, “Signal Strength” |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Reset |
Restore the router to its original factory default settings |
| Power Input |
Standard Power: DC 12V/1.5A
Power Range: DC 5~36V
Standard 3-PIN power jack, reverse-voltage and over-voltage protection |
| Physical Characteristic |
Iron, providing IP30 protection
Weight : 810g
Dimension (W x H x D): 207x135x28 mm |
| Environmental Limits |
Operating Temperature: -35~+75ºC (-22~+167℉)
Storage Temperature: -40~+85ºC (-40~+185℉)
Operating Humidity: 95% ( unfreezing) |
Thông tin đặt hàng
| Model |
Description |
WAN |
LAN |
Cellular
Antenna |
WIFI
Antenna |
SIM/
UIM |
| F3846 |
Dual-SIM, Dual-Module Wifi ROUTER |
1 |
4 |
1 |
1 |
2 |
Tài liệu
Datasheet
F3X46 Series ROUTER USER MANUAL V1.01
