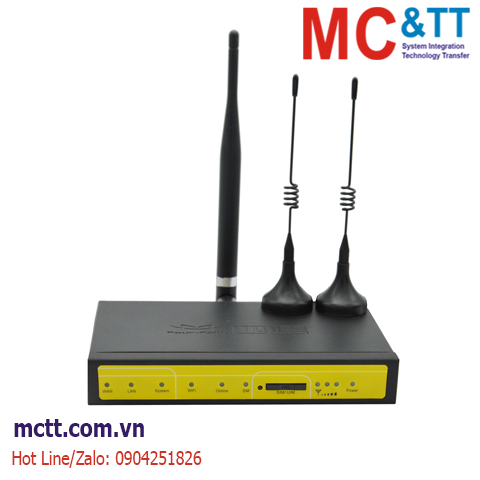

Router công nghiệp 4G (LTE-FDD) WIFI Four-Faith F3826
F3X26 Series Router is a kind of cellular terminal device that provides large data transfer function by public GPRS/CDMA/WCDMA/EVDO/LTE network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on
Tính năng
- 1 LAN, 1 WAN
- Provides large data transfer function by LTE&WCDMA
- Powerful WIFI, WIFI support 802.11b/g/n
- Support AP, client, Repeater, Repeater Bridge mode.
- Supports RS232 (or RS485/RS422), Ethernet and WIFI port
- Port Router support VPN link
- Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
- Provide management software for remote management ater, Repeater Bridge mode.
- GPS（optional）
- ZigBee（optional）
- Support double link backup between LTE&WCDMA and WAN ( PPPOE, ADSL ) ( optional )
- OS Linux
- VPN GRE IPsec
Thông số kỹ thuật
| Cellular Module |
Industrial cellular module |
| Standard and Band |
LTE FDD 2600/2100/1800/900/800MHz（Band 1/3/7/8/20）
700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional)
DC-HSPA+/HSPA+/HSDPA/HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8）
EDGE/GPRS/GSM850/900/1800/1900MHz |
| Bandwidth |
LTE FDD(Download speed:100Mbps，upload speed:50Mbps)
HSUPA:5.76Mbps(upload speed)
HSDPA:7.2Mbps(download speed:)
UMTS:384Kbps (download speed/upload speed)
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) |
| TX power |
<23dBm |
| RX sensitivity |
<-93.3dBm |
WIFI Specification
| Item |
Content |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc.
WPS (optional) |
| TX power |
20dBm（11n），24dBm（11g），26dBm（11b） |
| RX sensitivity |
<-72dBm@54Mpbs |
Hardware System
| Item |
Content |
| CPU |
Industrial 32bits CPU |
| FLASH |
16MB(Extendable to 64MB) |
| RAM |
128MB |
Interface type
| Item |
Content |
| WAN/LAN |
WAN/LAN configurable; 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps |
| Indicator |
"WAN", "LAN", "System", "WIFI", " Online ", "SIM", "Signal Strength", "Power" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
Power supply
| Item |
Consumption |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~36V |
Consumption
| Working |
Content |
| Standby |
4G:156~170mA@12VDC 3G:162~201mA@12VDC 2G:134~193mA@12VDC |
| Communication |
4G:310~494mA@12VDC 3G:294~412mA@12VDC 2G:174~201mA@12VDC |
| Schedule Shutdown |
2.4-2.8mA@12DVC |
Physical Characteristics
| Item |
Content |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
157x97x25 mm |
| Weight |
440g |
Environmental Limits
| Item |
Content |
| Operating Temperature |
-35~+75ºC（-31~+167℉） |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
Thông tin đặt hàng
| Model No. |
Description |
WAN |
LAN |
Cellular |
WIFI |
SIM/UIM |
| F3126 |
GPRS WIFI ROUTER |
1 |
1 |
1 |
1 |
1 |
| F3226 |
CDMA WIFI ROUTER |
1 |
1 |
1 |
1 |
1 |
| F3426 |
WCDMA WIFI ROUTER |
1 |
1 |
2 |
1 |
1 |
| F3626 |
EVDO WIFI ROUTER |
1 |
1 |
1 |
1 |
1 |
| F3726 |
TDD LTE WIFI ROUTER |
1 |
1 |
2 |
1 |
1 |
| F3826 |
FDD LTE WIFI ROUTER |
1 |
1 |
2 |
1 |
1 |
| F3A26 |
LTE WIFI ROUTER |
1 |
1 |
2 |
1 |
1 |
Tài liệu
Datasheet
F3X26 Series ROUTER USER MANUAL
