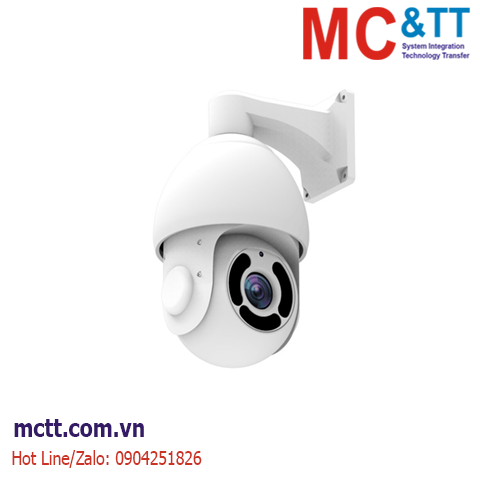

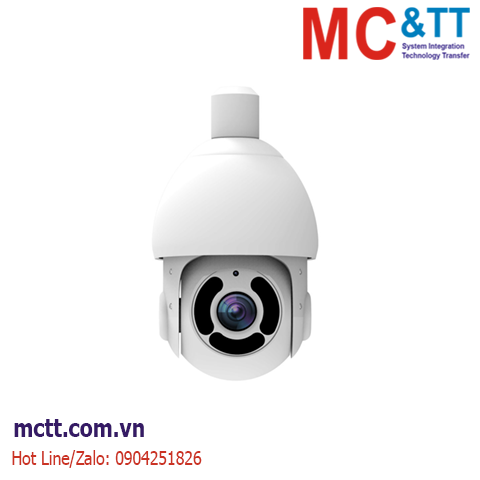

Camera IP giám sát Speed Dome 2 MP, Super WDR, IP66, 30X AF Lens Four-Faith F-SC431

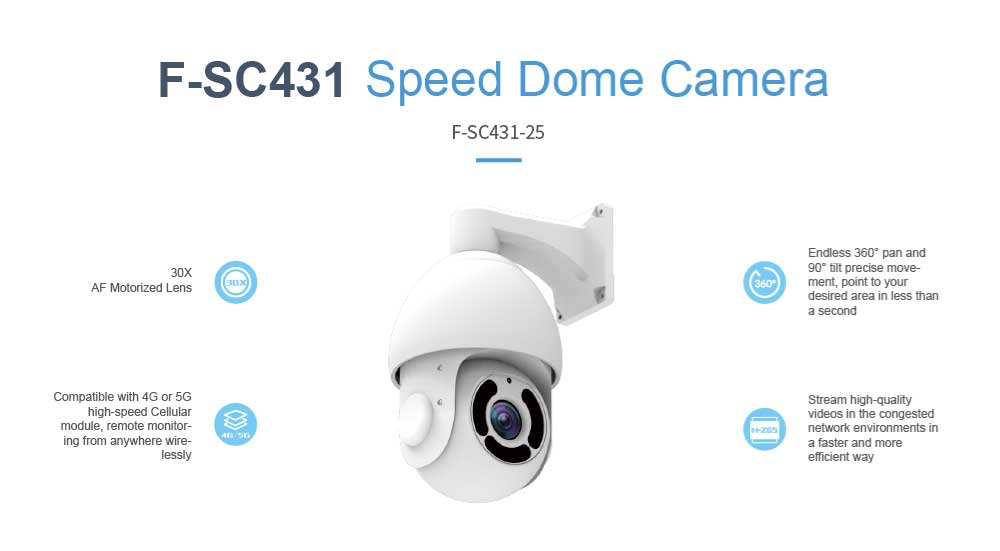

F-SC431 is a large size HD Speed Dome Camera, can do 360° pan and 90° tilt precisely. Up to 255 preset patrolling positions and scheduled PTZ tasks allowed users to monitoring the area as you like. Speed Dome Camera can be customized to add multiple IoT interfaces. What’s more, it can be integrated with 4G or 5G cellular module inside.
Four-Faith Speed Dome Camera can be integrated with most common IoT interface such as RS232, RS485, I/O, Relay, Analog Input and so on, provides an all-in-one IoT surveillance solution to save your resource at the same time improve the system integration.
Tính năng
- H.265, optimized in bit rate, bandwidth and storage usage, 50% off than H.264.
- Super WDR, up to 140dB wide dynamic range ensure all the bright and dark areas are well presented.
- IP66, industrial level protection, provides solid stability and durability.
- 30X AF Lens, keep the clarity andfocus on the correct objects rapidly,deliver the high-quality image.
Thông số kỹ thuật
| CAMERA |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Resolution |
2MP |
| Min. Illumination |
Color: 0.002Lux@F1.2
B/W: 0Lux with IR on |
| WDR |
Super WDR up to 140dB |
| Lens |
AF Motorized Lens
4.7∼141mm @F1.5∼F4.0, 30x Optical Zoom |
| Zoom Speed |
4s |
| Field of View |
H62°∼H3°/D70°∼D3°/V37°∼V1° |
| Shutter Time |
1/100000s~1s |
| IR Distance |
Up to 200m |
| Day&Night |
ICR Filter Auto Switch |
| VIDEO |
| Max. Image Resolution |
1920×1080 |
| Primary Stream |
30fps@ (1920×1080,
1280×960,1280×720, 704×576) |
| Secondary Stream |
30fps@ (704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×176) |
| Tertiary Stream |
30fps@ (1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×176) |
| Video Compression |
H.265 (HEVC) / H.264/MJPEG |
| Bit Rate |
16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image Setting |
Brightness/Contrast/Saturation/Sharpness |
| PTZ |
| Pan Range |
360° endless |
| Pan Speed |
Pan Manual Speed: 0.5°~180°/s, Pan Preset Speed: 240°/s |
| Tilt Range |
0°~90° |
| Tilt Speed |
Tilt Manual Speed: 0.5°~120°/s, Tilt Preset Speed: 200°/s |
| Preset Quantity |
255 |
| Patrol |
8 Patrols, up to 48 presets each patrol |
| Pattern |
4 Patterns |
| PTZ Position Display |
ON/OFF |
| Support Function |
Proportional Zoom, Preset Freezing, Power Off Memory |
| NETWORK |
| Ethernet |
1*RJ45 10M/100M Ethernet Port |
| Network Storage |
NAS (Support NFS, SMB/CIFS) |
| Protocol |
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DHCP, NTP, SNMP, NFS, CIFS |
| SYSTEM |
| Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 128G |
| Advanced Function |
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Antifog, White Balance, EIS, IP Address Filtering |
| Event Trigger |
Motion Detection, Network Disconnection, External Input, etc. |
| Event Action |
FTP Upload/SMTP Upload/SD Card Record |
| Video Analysis (Optional) |
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing,
Loitering, Human Detection, People Counting, Object Left, Object Removed (* In development) |
| System Compatibility |
ONVIF Profile S |
Thông tin đặt hàng
| Models |
Megapixel |
Lens |
Description |
| F-SC431-230 |
2MP |
30X AF Motorized Lens |
SD, DC&POE |
Tài liệu
Datasheet
Manual
