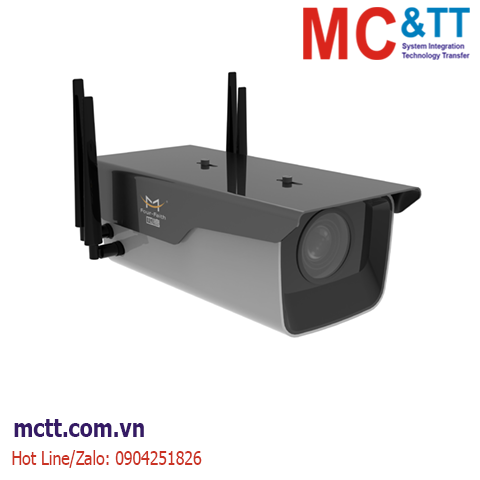

Camera IP giám sát Bullet 2 MP, Super WDR, IP67 Four-Faith F-SC241

Chia sẻ:
Mã sản phẩm: F-SC241
Thương hiệu: Four-Faith
Tình trạng:

Bullet Network Camera

Liên hệ
Mô tả

Camera IP giám sát Bullet 2 MP, Super WDR, IP67 Four-Faith F-SC241

F-SC241 is a large-sized bullet camera with optional fixed focus or 16x zoom lens, reserved for various IoT interfaces and routing functions, and it can be embedded with 4G and 5G high-speed wireless communication modules, equipped with cradle holder and support hard disk. At present, F-SC241 has been widely used in smart cities, smart security monitoring, intelligent water conservancy monitoring system, and other large-scale Internet of Things projects.

Bullet Network Camera

Base on image acquisition, the Four-Faith Bullet Network camera provides a lot of IoT application ports such as RS232, RS485, I/O, relay, analog input, pulse input, GPS, 4G communication network, and so on. Make every effort to achieve the independent development of hardware & software and highly customization. Bullet Network Camera F-SC241 not only can be widely used in various IoT application scenarios but also can be embedded into the rich common protocol such as Modbus, MQTT, and so on.

Bullet Network Camera

Four-Faith intelligent algorithm team is focusing on developing industry-level image recognition technology for the Internet of Things. Currently, the 5G Bullet Network camera has completed the development of algorithms such as water scale recognition and people counting statistics. Also, have many industry-level algorithms are being implemented.

Front-end integration and equipment interconnection can avoid the phenomenon of front-end devices doing fragmented and repeated work. Meanwhile, it perfectly solves the problems of difficult deployment, incompatibility, non-interactive and inconvenient management of equipment. Besides, real-time common protocol conversion and intelligent analysis are processed in the front-end devices which is not only saves network resources but also improves the response speed. So that Bullet Network Camera F-SC241 can truly achieve the interconnection of everything, protocol interworking, unified management, and fast response.

Tính năng

  • H.265, optimized in bit rate, bandwidth and storage usage, 50% off than H.264.
  • Super WDR, up to 140dB wide dynamic range ensure all the bright and dark areas are well presented.
  • IP67, industrial level protection, provides solid stability and durability.
  • 5G High-speed Wireless Communication
  • Highly Customization
  • AI Image Recognition
  • Front-end Integration
  • Industrial level Design



Thông số kỹ thuật

Model F-SC241-21 (Fixed Lens) F-SC241-216 (16X)
CAMERA
Image Sensor 1/2.8″ Progressive Scan CMOS
Resolution 2MP
Min. Illumination Color: 0.002Lux@F1.2
B/W: 0Lux with IR on
WDR Super WDR up to 140dB
Model F-SC241-21 (Fixed Lens) F-SC241-216 (16X)
CAMERA
Lens Fixed Lens
2.8mm @F2.0
16X AF Motorized Lens
5.85∼93.6mm @F1.8∼F3.9
Field of View H123°/D142°/V68° H55.4°∼H3.55°
D62.6°∼D4.05°
V31.6°∼V2°
Shutter Time 1/100000s~1/5s
IR Distance 150m
Day & Night ICR Filter Auto Switch
VIDEO
Max. Image Resolution 1920×1080
Primary Stream 30fps@(1920×1080,
1280×960,1280×720, 704×576)
Secondary Stream 30fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×176 )
Tertiary Stream 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×176 )
Video Compression H.265(HEVC)/H.264/MJPEG
Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Image Setting Brightness/Contrast/Saturation/Sharpness
NETWORK
Ethernet 1*RJ45 10M/100M Ethernet Port
Network Storage NAS (Support NFS, SMB/CIFS)
Protocol IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DHCP, NTP, SNMP, NFS, CIFS
SYSTEM
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 128G
Advanced Function Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-fog, White Balance, EIS, IP Address Filtering
Event Trigger Motion Detection, Network Disconnection, External Input, etc.
Event Action FTP Upload/SMTP Upload/SD Card Record
Video Analysis (Optional) Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed (* In development)
CELLULAR(Optional
Standard & Band 5G, LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth 5G NR: Downstream rate 3.4Gbps, uplink rate 350Mbps
FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps
TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps
Transmit Power <23dBm
Sensitivity <-97dBm
GPS(Optional
GPS Module Industrial GPS module,compatible with Beidou、GLONASS
Accuracy Positioning: 2.5m CPE
SBAS: 2.0m CPE
Sensitivity Tracking: -160dBm
Recapture: -160dBm
Cold Boot: -146dBm

Thông tin đặt hàng

Models Megapixel Lens Description
F-SC241-21-5G 2MP Fixed Lens SD, DC&POE, 5G High-speed Module
F-SC241-21-4G 2MP Fixed Lens SD, DC&POE, 4G High-speed Module
F-SC241-216-5G 2MP 16X AF Motorized Lens SD, DC&POE, 5G High-speed Module
F-SC241-216-4G 2MP 16X AF Motorized Lens SD, DC&POE, 4G High-speed Module

Tài liệu

Datasheet

Manual
