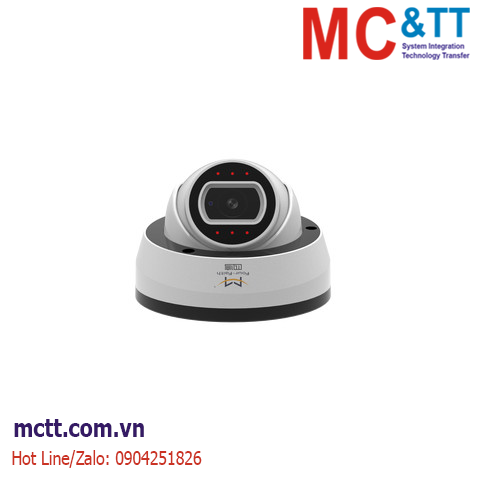

Camera IP giám sát Mini Dome 2 MP, Super WDR, IP67 Four-Faith F-SC621
F-SC621 is a turrent style mini dome camera. The fashion appearance fits most inddor scene. Provides 2MP sensor, fixed lens. It can be customized to add multiple IoT interfaces.
Four-Faith Speed Dome Camera can be integrated with most common IoT interface such as RS232, RS485, I/O, Relay, Analog Input and so on, provides an all-in-one IoT surveillance solution to save your resource at the same time improve the system integration.
Tính năng
- H.265, optimized in bit rate, bandwidth and storage usage, 50% off than H.264.
- Super WDR, up to 140dB wide dynamic range ensure all the bright and dark areas are well presented.
- IP67, industrial level protection, provides solid stability and durability.
- Turret Style, suitable for most indoor environment.
Thông số kỹ thuật
| CAMERA |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Resolution |
2MP |
| Min. Illumination |
Color: 0.002Lux@F1.2
B/W: 0Lux with IR on |
| WDR |
Super WDR up to 140dB |
| Lens |
Fixed Lens
2.8mm @F2.0
3.6mm @F2.2
4mm @F2.2 |
| Mount |
M12 |
| Field of View |
H123°/D142°/V68° (2.8mm), H108°/D126°/V59° (3.2mm), H90°/D105°/V48° (3.6mm) |
| Shutter Time |
1/100000s~1/5s |
| IR Distance |
50m |
| Day&Night |
ICR Filter Auto Switch |
| Model |
F-SC621-21 |
| VIDEO |
| Max. Image Resolution |
1920×1080 |
| Primary Stream |
30fps@(1920×1080,
1280×960,1280×720, 704×576) |
| Secondary Stream |
30fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×176 ) |
| Tertiary Stream |
30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×176 ) |
| Video Compression |
H.265(HEVC)/H.264/MJPEG |
| Bit Rate |
16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image Setting |
Brightness/Contrast/Saturation/Sharpness |
| NETWORK |
| Ethernet |
1*RJ45 10M/100M Ethernet Port |
| Network Storage |
NAS (Support NFS, SMB/CIFS) |
| Protocol |
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DHCP, NTP, SNMP, NFS, CIFS |
| SYSTEM |
| Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 128G |
| Advanced Function |
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Antifog, White Balance, EIS, IP Address Filtering |
| Event Trigger |
Motion Detection, Network Disconnection, External Input, etc. |
| Event Action |
FTP Upload/SMTP Upload/SD Card Record |
| Video Analysis (Optional) |
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing,
Loitering, Human Detection, People Counting, Object Left, Object Removed (* In development) |
| System Compatibility |
ONVIF Profile S GB/T28181-2016
Modbus RTU MQTT
IEC101*, IEC104* (*In development) |
| DC-12V IN* |
1 |
| Audio I/O@Audio Compression* |
1/1&G.711/AAC |
| Alarm In* |
1 |
| Alarm Out* |
1 (Port can Drive 12V or 5V Relay) |
| Relay Out* |
1 |
| Power Return Out* |
12V@500MA or 5V@1000MA |
| ADC In* |
1@8bit |
| UART Port* |
TTL@115200bps or Expansion for RS485 |
| Working Temperature |
-40℃~60℃ |
| Working Humidity |
0~90% (Non-condensing) |
| Power Supply |
PoE (802.3af) |
| Power Consumption |
3W MAX
6W MAX (With IR on) |
| Weather Proof |
Up to IP67-rated for Weather-resistant Performance |
| Weight |
410g |
| Dimensions |
Φ110mmX76mm |
Thông tin đặt hàng
| Models |
Megapixel |
Lens |
Description |
| F-SC621-21 |
2MP |
Fixed Lens 2.8mm |
SD, DC&POE |
Tài liệu
Datasheet
Manual
