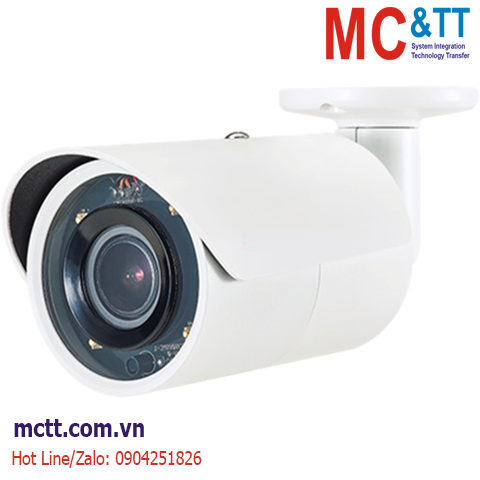

Camera IP giám sát an ninh ICP DAS iCAM-ZMR8422X CR
Feature
• Full HD 2 megapixel CMOS image sensor
• 1080P True H.264 AVC High Profile video compression
• H.264 and Motion JPEG multi-profile video streaming
• Auto focus with zoom / focus motorized lens
• Smart H.264 supported
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 100dB
• Digital PTZ supported
• IVS supported
• Tampering / Motion detection alarm function
• High-efficiency IR LED, radiant distance up to 30m
• Day & Night (IR cut removable)
• Cable managed housing and bracket
• ONVIF Profile S supported
• IP67 rain and dust resistant
• Built-in 802.3af Compliant PoE
Introduction
iCAM-ZMR8422X is a 2MP auto-focused vandal resistant bullet IR IP camera designed into a range of environments such as retail, home, office, residential premises, and hotel security. It features a full HD 2.0 megapixel CMOS image sensor. The camera has built-in IR-cut filter which allows clearer images at day and night operations even in the low lux condition. The high efficiency IR LED radiant distance can extend up to 30m. Its auto focus feature allows users to automatically focus the camera from a distant location. With motorized lens, all you need to do with zoom/focus adjustments is simply a click on browsers. Supported with privacy mask, 3D noise reduction, 2D WDR function, and HDR function up to 100dB, it ensures to deliver a clear and detailed image to the users.
Application
Click to view the WISE Surveillance Solution With iCAM Camera.
Specifications
| Alarm and Event |
| Alarm Events |
Files uploaded via HTTP, SMTP, FTP |
| Alarm Triggers |
Motion Detection, Tampering Detection, Advanced Motion Detection |
| Camera |
| Aperture |
F1.6 |
| Field of View |
102° - 34° |
| Image Sensor |
1/2.7”, CMOS |
| Lens |
2.8 ~12 mm |
| Max. Resolution |
1920 x 1080, 2MP |
| Video |
| Streams |
4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Mbps Base-T |
| PoE |
Yes |
| Protocol |
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profi le S, SDDP, Bonjour, 802.1x, SSL/TLS |
| ONVIF |
Profile S |
| Power |
| Consumption |
DC12V, 7.5W
PoE, 8.6W |
| Powered from PoE |
Yes |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
68(W) × 69(H) × 214(D) |
| Ingress Protection Rating |
IP67 |
| Environment |
| Operating Temperature |
Starting: -10°C – +50°C (14°F – 122°F)
Operating: -40°C – +50°C (-40°F – 122°F)
Storage : -25°C – +60°C (-13°F – 140°F) |
| Humidity |
10% ~ 90% |
Download
Datasheet
Documents
Ordering Information
| iCAM-ZMR8422X CR |
Auto Focus IR Bullet IP Camera, with 2MP and IP67 Resistant (RoHS) |
