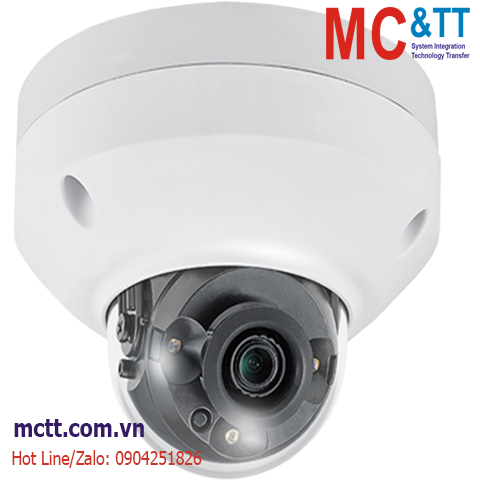

Camera IP giám sát an ninh ICP DAS iCAM-MR6322 CR
Feature
• Full HD 2 megapixel CMOS image sensor
• 1080P True H.264 AVC High Profile video compression
• H.264 and Motion JPEG multi-profile video streaming
• Smart H.264 supported
• 3D noise reduction (MCTF)
• 2D WDR function
• HDR function up to 100dB
• High-efficiency IR LED, radiant distance up to 30m
• Day & Night (IR cut removable)
• ONVIF Profile S supported
• IP67 rain and dust resistant
• Built-in 802.3af Compliant PoE
Introduction
iCAM-MR6322 is an HD 30M-Rage IR Fixed Dome IP Camera in the M features 1080p at 30 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing intelligent image signal processing, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The support of PoE, privacy masking, white balance, as well as the minimum illumination 0.13 Lux at F2.0 can certainly satisfy multiple applications.
Application
Click to view the WISE Surveillance Solution With iCAM Camera.
Specifications
| Alarm and Event |
| Alarm Events |
Files uploaded via HTTP, SMTP, FTP |
| Alarm Triggers |
Motion Detection, Tampering Detection, Advanced Motion Detection |
| Camera |
| Aperture |
F2.0 |
| Field of View |
90° |
| Image Sensor |
1/2.7”, CMOS |
| Lens |
4 mm |
| Max. Resolution |
1920 x 1080, 2MP |
| Video |
| Streams |
4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Ethernet |
| Ports |
1 x RJ-45, 10/100 Mbps Base-T |
| PoE |
Yes |
| Protocol |
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profi le S, SDDP, Bonjour, 802.1x, SSL/TLS |
| ONVIF |
Profile S |
| Power |
| Consumption |
DC12V, 4.5W
PoE, 5.6W |
| Powered from PoE |
Yes |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
Ø110 × 89(H) mm |
| Ingress Protection Rating |
IP67 |
| Environment |
| Operating Temperature |
-40°C – +50°C (-40°F – 122°F) |
| Humidity |
10% ~ 90% |
Download
Datasheet
Documents
Ordering Information
| iCAM-MR6322 CR |
Fixed IR Dome IP Camera, with 2MP and IP67 Resistant (RoHS) |
