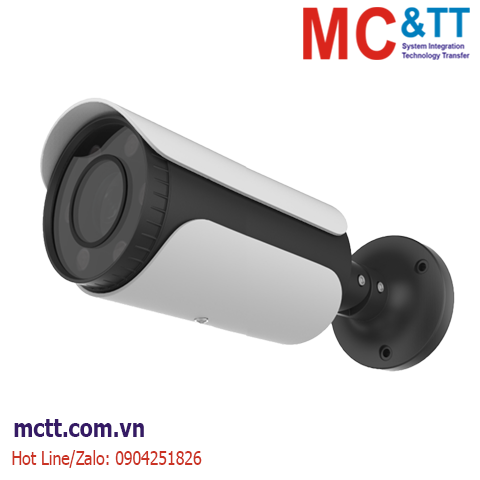

Camera IP giám sát Pro Bullet 2 MP, Super WDR, IP67 Four-Faith F-SC332
F-SC332 is the medium size pro bullet IP camera, design as the industrial level (IP67), using the 2MP 4X AF Lens to keep the clarity and focus on the correct objects rapidly, always deliver the high-quality image. With the various features such as IoT interfaces, video analysis, super WDR, F-SC332 has been used in smart city, smart industry, smart building and other fields.
The Pro Bullet Camera can be integrated with most common IoT interface such as RS232, RS485, I/O, Relay, Analog Input, provides an all-in-one IoT surveillance solution.
Tính năng
- H.265, optimized in bit rate, bandwidth and storage usage, 50% off than H.264.
- Super WDR, up to 140dB wide dynamic range ensure all the bright and dark areas are well presented.
- IP67, industrial level protection, provides solid stability and durability.
- 4X AF Lens, keep the clarity and focus on the correct objects rapidly, always deliver the high-quality image.
Thông số kỹ thuật
| Camera |
|
| Model |
F-SC332-24 |
| Items |
Contents |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Resolution |
2MP |
| Min. Illumination |
Color: 0.002Lux@F1.2
B/W: 0Lux with IR on |
| WDR |
Super WDR up to 140dB |
| Lens |
4X Motorized Lens
2.7∼13.5mm (3.1∼11.1mm) @F1.6∼F3.4
4x Optical Zoom |
| Mount |
M12 |
| Field of View |
H113.06°∼H28.77°
D136.70°∼D33°
V59.02°∼V16.2° (3.1∼11.1mm) |
| Shutter Time |
1/100000s~1/5s |
| IR Distance |
Up to 100m |
| Day & Night |
ICR Filter Auto Switch |
| Video |
|
| Items |
Contents |
| Max. Image Resolution |
1920×1080 / 2650×1920 |
| Primary Stream |
30fps@(1920×1080,
1280×960,1280×720, 704x576) |
| Secondary Stream |
30fps@(704x576, 640×480, 640×360, 352x288, 320x240, 320x192, 320x176 ) |
| Tertiary Stream |
30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320x192, 320x176 ) |
| Video Compression |
H.265(HEVC)/H.264/MJPEG |
| Bit Rate |
16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image Setting |
Brightness/Contrast/Saturation/Sharpness |
| Network |
|
| Items |
Contents |
| Ethernet |
1*RJ45 10M/100M Ethernet Port |
| Network Storage |
NAS (Support NFS, SMB/CIFS) |
| Protocol |
IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DHCP, NTP, SNMP, NFS, CIFS |
| System |
|
| Items |
Contents |
| Storage |
Support microSD/SDHC/SDXC Card Local Storage, up to 512G |
| Advanced Function |
Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Anti-fog, White Balance, EIS, IP Address Filtering |
| Event Trigger |
Motion Detection, Network Disconnection, External Input, etc. |
| Event Action |
FTP Upload/SMTP Upload/SD Card Record |
| Video Analysis (Optional) |
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed (* In development) |
| System Compatibility |
ONVIF Profile S |
| Items |
Contents |
| Standard & Band |
5G, LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE |
| Bandwidth |
5G NR: Downstream rate 3.4Gbps, uplink rate 350Mbps
FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps
TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps |
| Transmit Power |
<23dBm |
| Sensitivity |
<-97dBm |
| GPS (Optional) |
|
| Items |
Contents |
| GPS Module |
Industrial GPS module，compatible with Beidou, GLONASS |
| Accuracy |
Positioning: 2.5m CPE
SBAS: 2.0m CPE |
| Sensitivity |
Tracking: -160dBm
Recapture: -160dBm
Cold Boot: -146dBm |
| Interfaces ( * = Optional ) |
|
| Items |
Contents |
| DC-12V IN* |
1 |
| Audio I/O @Audio Compression* |
1/1&G.711/AAC |
| Alarm In* |
1 |
| Alarm out* |
1 (Port can Drive 12V or 5V Relay) |
| Relay Out* |
|
| Power Return Out* |
12V@500MA & 5V@1000MA |
| ADC In* |
1 @ 8bit |
| UART Port* |
TTL @ 115200bps or Expansion for RS485 |
| Others |
|
| Items |
Contents |
| Working Temperature |
-35℃~75℃ |
| Working Humidity |
0~90% (Non-condensing) |
| Power Supply |
PoE (802.3at) |
| Power Consumption |
6W MAX
12W MAX (With IR on) |
| Protection Level |
Up to IP67-rated for Weather-resistant Performance |
| Weight |
610g |
| Dimensions |
Φ75mmX295mm |
Thông tin đặt hàng
| Models |
Megapixel |
Lens |
Description |
| F-SC332-24 |
2MP |
4X Motorized Lens
2.7∼13.5mm |
SD, DC&POE |
