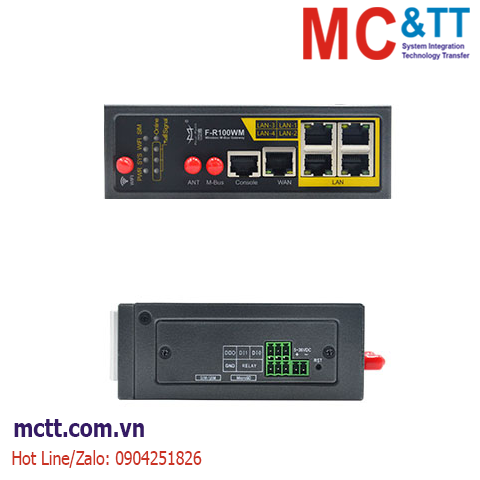

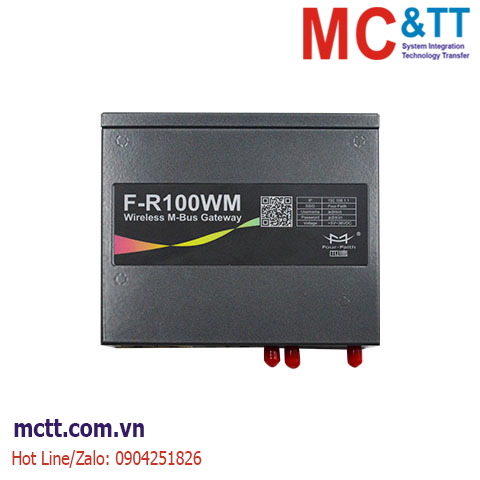

Router công nghiệp M-Bus + 3G/4G + Wifi Four-Faith F-R100WM
Four-Faith Wireless M-Bus Gateway F-R100WM based on M-Bus protocol with compliant standard EN13757-3, which is widely used in Europe energy market for AMI (Advanced Metering Infrastructure) applications.
Wireless M-Bus Gateway F-R100WM operates in 169/433/868MHz free-license band, and supports up to 200 meters access simultaneously.
Wireless M-Bus Gateway F-R100WM can work in listen, normal or Install mode, depends on the openness of the network.
Wireless M-Bus Gateway F-R100WM can receive data from all access slaves, and then transparent transmission data to cloud server by 3G, 4G or ethernet. Also, Wireless M-Bus Gateway F-R100WM supports TCP/UDP/FTP/HTTP/VPN Client/VPN Sever/DHCP protocols, and with AES128 data encryption, and contains many interface types, including GPIO, WAN, LAN, WIFI and SIM/UIM.
Wireless M-Bus Gateway F-R100WM is especially suitable for communication with heat, water, electricity and gas meters through wireless M-Bus technology.
Tính năng
- High-performance industrial-grade 32bits CPU
- High-performance industrial-grade WM-Bus solution
- Hardware and software WDT
- Support variety types of wan connection, including static IP, DHCP, L2TP, PPTP, PPPOE, 2.5G/3G/4G
- Support Wireless cellular and wired WAN double link intelligent switch backup function(optional).
- Support VPN client (PPTP, L2TP, IPSEC) (only VPN version support)
- Support VPN server (PPTP, L2TP, IPSEC) (only VPN version support)
- Support remote management, such as SYSLOG, SNMP, TELNET, SSHD, HTTPS
- support NTP, built-in RTC
- Support 802.11 b / g / n
Thông số kỹ thuật
| F-R100WM-W WMBUS+WCDMA WIFI Router |
| Standard & Bands |
Support DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/1900/2100MHz tri-band,
850/900/1900/2100MHz quad-band (optional)
Support GSM 850/900/1800/1900MHz quad-band
Support GPRS/EDGE CLASS 12 |
| Band Width |
DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps
HSPA+: downlink rate 21Mbps, uplink rate 5.76Mbps
HSDPA: downlink rate 7.2Mbps, HSUPA: uplink rate 5.76Mbps
UMTS: 384Kbps |
| Output Power |
< 24dBm |
| Receive Sensitivity |
< -109dBm |
| F-R100WM-V WMBUS+EVDO WIFI Router |
| Standard & Bands |
Support CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional), 450MHz (optional)
Support CDMA2000 1X EVDO Rev B 800/1900MHz (optional)
Support IS-95 A/B and CDMA2000 1xRTT wireless network |
| Band Width |
EXDO Rev.A: downlink rate 3.1Mbps, uplink rate 1.8Mbps
EXDO Rev.B: downlink rate 14.7Mbps, uplink rate 5.4Mbps(optional) |
| Output Power < 23dBm |
| Receive Sensitivity < -104dBm |
| F-R100WM-TL WMBUS+TDD LTE WIFI Router |
| Standard & Bands |
Support LTE TDD 2600/1900/2300MHz (Band 38/39/40),
800/1400/1800(Band27/61/62)(optional)
Support TD-SCDMA 2010/1900MHz (A/F Band 34/39)
Support GSM/GPRS/EDGE 900/1800/1900MHz |
| Band Width |
LTE TDD: downlink rate 61Mbps, uplink rate 18Mbps
TD-HSPA+: downlink rate 4.2Mbps, uplink rate 2.2Mbps |
| Output Power < 23dBm |
| Receive Sensitivity < -97dBm |
| F-R100WM-FL WMBUS+FDD LTE WIFI Router |
| Standard & Bands |
Support LTE FDD 2600/2100/1800/900/800MHz, 700/1700/2100 MHz(optional) Support DC-HSPA+/HSPA+/HSDPA/HSUPA/UMTS 850/1900/2100MHz tri-band, 850/900/1900/2100MHz quad-band (optional)
Support EDGE/GPRS/GSM 850/900/1800/1900MHz
Support GPRS CLASS 10
Support EDGE CLASS 12 |
| Band Width |
LTE FDD: downlink rate 100Mbps, uplink rate 50Mbps
DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps
HSPA+: downlink rate 21Mbps, uplink rate 5.76Mbps
HSDPA: downlink rate 7.2Mbps, HSUPA: uplink rate 5.76Mbps
UMTS: 384Kbps |
| Output Power < 23dBm |
| Receive Sensitivity < -97dBm |
| F-R100WM-L WMBUS+LTE WIFI Router |
| Standard & Bands |
Support LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, and GPRS/EDGE |
| Band Width |
LTE FDD: downlink rate 100Mbps, uplink rate 50Mbps
LTE TDD: downlink rate 61Mbps, uplink rate 18Mbps
DC-HSPA+: downlink rate 42Mbps, uplink rate 5.76Mbps
TD-HSPA+: downlink rate 4.2Mbps, uplink rate 2.2Mbps
EVDO Rev.A: downlink rate 3.1Mbps, uplink rate 1.8Mbps |
| Output Power < 23dBm |
| Receive Sensitivity < -97dBm |
| WIFI |
| Standard Support standard IEEE802.11b/g/n |
| Band Width |
IEEE802.11b/g: the maximum speed rate up to 54Mbps
IEEE802.11n: the maximum speed rate up to 150Mbps |
| Security Support WEP/WPA/WPA2 encryption types |
| Output Power 20dBm(11n), 24dBm(11g), 26dBm(11b) |
| Receive Sensitivity <-72dBm@54Mbps |
| WM-BUS |
| Protocol Compliant with EN13757-3/4/5 standard or OMS standard |
| Bands Free-license 169/433/868MHz |
| Range Up to 800m |
| Output Power 14dBm@868MHz; 14dBm@433MHz; 25dBm@169MHz |
| Receive Sensitivity -110dBm@M-Bus |
| Radio Rate 4.8, 32.768 or 100kbps |
| Modes S, T, C, N |
| Role Repeater or Master |
| HARDWARE |
| CPU Industrial 32bits CPU |
| FLASH 16MB (Able extend to 64MB) |
| DDR2 |
128MB |
| INTERFACE |
| WAN 1*10/100 Mbps WAN |
| LAN 4*10/100 Mbps LAN |
| GPIO 2*DI \ 1*DO |
| Console 1*Console (RS232/RS485) |
| TF |
1*TF (32G) |
| Indicators “PWR”, “SYS”, “WIFI”, “SIM”, “WMBUS” |
Antenna |
Cellular: 1* standard SMA female antenna, 50-ohm, lighting protection (optional) WM-BUS: 1* standard SMA female antenna, 50-ohm, lighting protection (optional) WIFI: 1* standard SMA male antenna, 50-ohm, lighting protection (optional) |
| SIM/UIM 1*1.8/3.3V SIM/UIM |
| POWER SUPPLY |
| Range DC 5~36 V |
| Standard DC 12V/1.5A |
| POWER CONSUMPTION |
| Stand By 4G: 280 ~ 330mA@12V 3G: 268 ~ 295mA@12V |
| Communication 4G: 310 ~ 563mA@12V 3G: 279 ~ 360mA@12V |
| PHYSICAL PROPERTIES |
| Dimensions 133.0x115.7x45.0mm |
| Weight |
520g |
| Shell IP30 |
| OTHERS |
| Operating Temperature -35~+75ºC |
| Storage Temperature -40~+85ºC |
| Relative Humidity 95% (non-condensing) |
