Mô tả

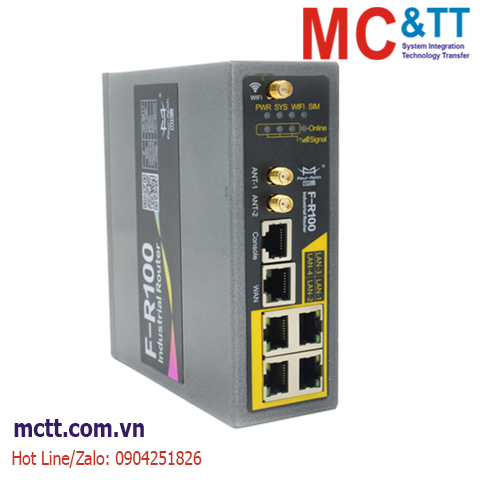

Router công nghiệp 4G (LTE) 1 cổng WAN + 4 cổng LAN + Wifi + 2DI/DO Four-Faith F-R100

F-R100 cung cấp kết nối từ xa an toàn, đáng tin cậy trong thời gian thực cho các hệ thống SCADA, hệ thống quản lý phân phối, v.v. Với nhiều tùy chọn như 2 SIM, wifi 802.11n, 2.5G / 3G / HSPA + / LTE . Với việc gắn DIN-rail, dải nhiệt độ hoạt động rộng và vỏ kim loại IP30, F-R100 là một giải pháp tiện lợi nhưng đáng tin cậy cho bất kỳ ứng dụng không dây công nghiệp nào.

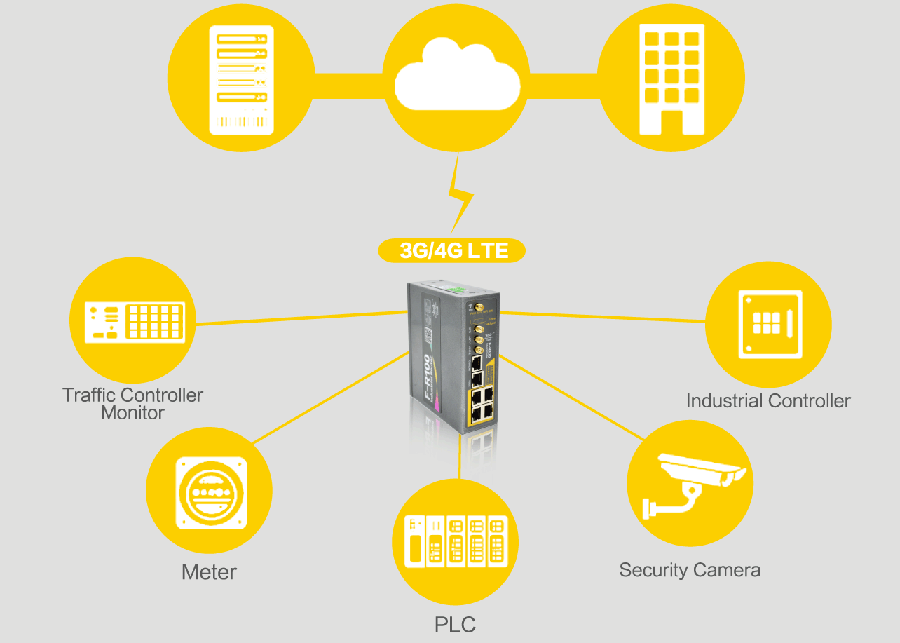

Sản phẩm được sử dụng rộng rãi trên các lĩnh vực M2M, chẳng hạn như giao thông thông minh, lưới điện thông minh, tự động hóa công nghiệp, đo xa, POS, quan trắc, giám sát môi trường, v.v.

Tính năng

  • High-performance industrial-grade CPU
  • High-performance industrial-grade wireless communication module
  • Metal casing, IP30 protection level, suitable for most industrial control applications
  • Wide range power input (DC 5~36V)
  • LTE Industrial Router support multiple WAN access methods
  • LTE Industrial Router support static IP, DHCP, L2TP, PPTP, PPPOE,2.5G/3G/4G
  • LTE Industrial Router support APN/VPDN
  • Schedule Online and Offline
  • LTE Industrial Router support multiple online trigger ways, including SMS, ring, and data.
  • LTE Industrial Router support DHCP server and client, firewall, NAT, DMZ host, URL block, QOS, etc.
  • LTE Industrial Router support TCP/IP, UDP, FTP (Optional), and HTTP
  • LTE Industrial Router support APN/VPDN

Thông số kỹ thuật

CELLULAR WAN
  • Supported Frequency Bands
  • LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28
  • WCDMA: 2100(B1), 1900(B2), 850(B5)
  • EV-DO/CDMA: 800(BC0)
  • GSM/GPRS/EDGE: 850/900/1800/1900
  • Automatic SIM based network operator switching
HOST INTERFACES
  • 10/100 Base-T RJ45 Ethernet port
  • RS-232 or RS-485 Serial Console Port
  • 3 SMA antenna connectors (WI-FI and Double-cellular)
  • Active GPS/ZigBee antenna support (option)
  • (6) pin 3.5mm terminal block

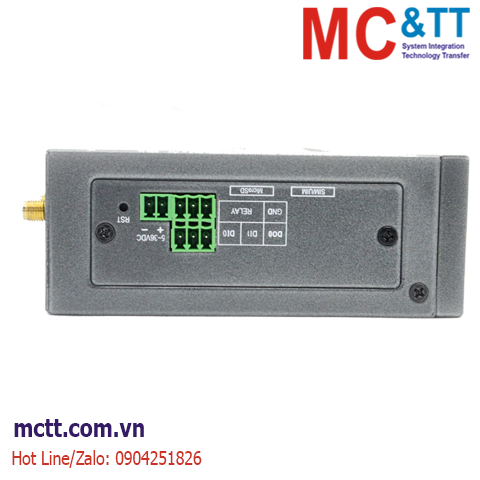

INPUT/OUTPUT
  • (6) pin 3.5mm terminal block
  • (2) DI, (1) DO, (1) Relay.
  • Input ON Voltage: 5 to 30 VDC
  • Input OF Voltage: 0 to 3 VDC
  • Output < 50mA @ 30VDC
LAN
  • DNS, DNS Proxy
  • DHCP Server
  • IP Passthrough (option)
  • VLAN
  • Host Interface Watchdog
  • PPPoE
SERIAL
  • TCP/U DP PAD Mode
  • Modbus (ASCII, DTU, Variable)
  • PPP
  • Reverse Telnet
WI-FI
  • IEEE802.11 b/g/n, AP and client mode.
  • Adjustable output power (Max: 26dBm)
  • Access point for up to 30 clients
  • Simultaneous access point/client mode
  • WEP, WPA-PSK, WPA2-PSK etc. Security
NETWORK AND ROUTING
  • Network Address Translation (NAT)
  • Port Forwarding
  • Host Port Routing
  • VRRP
  • Reliable Static Route
  • Dynamic DNS
VPN
  • IPsec, GRE, and OPENVPN Client
  • Up to 10 concurrent tunnels
  • Split Tunnel
  • Dead Peer Detection (DPD)
  • Multiple Subnets
  • VPN Failover
SECURITY
  • Remote Authentication
  • DMZ
  • Inbound and Outbound Port filtering
  • Inbound and Outbound Trusted IP
  • MAC Address Filtering
  • PCI DSS V3.0 compatible
GPS (Option)
  • Antenna Interface: SMA Female, 50 ohms impedance
  • Tracking Sensitivity: better than -144 dBm
  • Horizontal position accuracy: 2.5 m
  • Time-To-First-Fix: 29 s
  • Protocol: NMEA-0183 V2.3
EVENTS ENGINE (Option)
  • Custom event triggers and reports
  • Configurable interface, no programming
  • Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
  • Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
  • Event Actions: Drive Relay Output
Four-Faith MANAGEMENT SERVICE
  • Secure cloud-based device management application
  • Remote provisioning
  • Gateway configuration and template management
  • Configurable monitoring and alerting
  • Software and radio module firmware updates
  • Auto configuration
MANAGEMENT INTERFACES
  • Web-Based User Interface
  • Device Configuration Templates
  • Software and radio module firmware updates
  • AT Command Line Interface (Telnet/SSH/Serial)
  • SMS Commands (Option)
  • SNMP
Operating Environment
  • Operating Temperature: -35°C to +75°C / -31°F to +167°F
  • Storage Temperature: -40°C to 85°C / -40°F to 185°F
  • Humidity: 90% RH @ 60°C
DIMENSIONS
  • Housing & Weight: Metal, **g
  • Dimension: (L x W x H): 133 x 115.7 x 45 mm
  • Installation: 34.6 mm Din-Rail or wall mounting or desktop

Thông tin đặt hàng

Model No Description
F-R100-FL Cellular (LTE/WCDMA), WIFI, SIM*1, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option)
F-R100-L/L Cellular (LTE, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.), GPS(Option)
F-R100-L-SIM2 Cellular (LTE/WCDMA), WIFI, SIM*2, I/O (2*DI, 1*DO, 1*Relay), GPS(Optional)

Tài liệu

Datasheet

Manual
