Đầu ghi hình NVR PoE 5G/4G Four-Faith F-NVR200

Mã sản phẩm: F-NVR200

Thương hiệu: Four-Faith

Tình trạng:

5G/4G PoE Network Video Recorder

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Giải pháp tự động hóa tích hợp cho hệ thống FOUP Stocker trong sản xuất chất bán dẫn
iNA110: Axiomtek ra mắt Gateway an ninh mạng mới cho môi trường OT
eBOX570 - Hệ thống điện toán biên mới cho AMR, AGV và Bộ điều khiển Tự động hóa
AIE510-ONX – Hệ thống Edge AI mới hỗ trợ NVIDIA® Jetson Orin™ NX cho thế hệ Robot tiếp theo

Mô tả

Mô tả

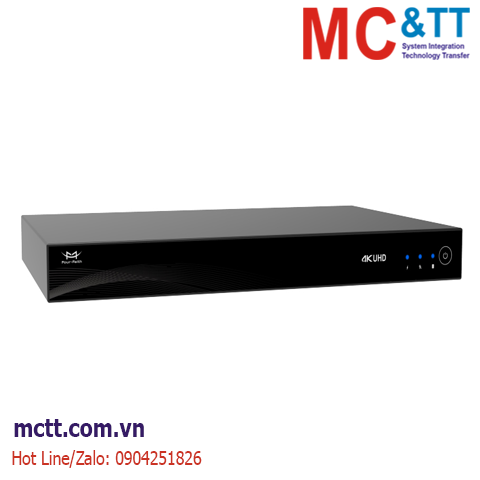

Đầu ghi hình NVR PoE 5G/4G Four-Faith F-NVR200

F-NVR200 is a 5G/4G PoE network video recorder specially designed for intelligent IoT surveillance system. The NVR can provide long distances and low latency HD video wirelessly by using the industrial 4G/5G module. In addition, F-NVR200 support 16 channels H.265/H.264 video input, has 2 SATA HDDs, the storage capacity up to 12TB. Support third-party ONVIF Profile T cameras, provide the IoT interfaces such as RS232 and RS485 to connect the IoT devices for the IoT applications.

Tính năng

Standard RS232, RS485 and Ethernet interfaces
Front-end edge integration and equipment intercommunication linkage
Easy to use, flexible, multiple working mode options
Support various IoT protocol
HDMI video output up to 4K (3840X2160) resolution
Integrated with most common IoT interfaces
Support IPC event trigger & image capture
H.265, optimized in bit rate, bandwidth and storage usage, 50% off than H.264.
Provide 8/16 PoE ports, support 802.3AF, 802.3AT
Support remote management & upgrade

Thông số kỹ thuật

Hardware
Model	F-NVR200-16C8P	F-NVR200-16C16P
Items	Contents
CPU	ARM Cortex A7 Dual-core 1.3GHz
FLASH	128MB
DDR3	1GB
Video
Input	16 channels HD IP Video Input
Output	1 x HDMI, Resolution(@30fps): 3840x2160, 1920x1080, 1280x720, 1024x768 1 x VGA, Resolution(@30fps): 1920x1080, 1280x720, 1024x768
Decoding Format	H.265 / H.264
Video Input Protocol	ONVIF (3.0), PELCO, RTSP, etc
Capability	4x1080p@30fps
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF
Audio
Input	16 channels from IPC
Audio Compression	G711-Alaw, G711-Ulaw, AAC-LC
Sample Rate	8KHz, 16KHz
Voice Talkback	1 channel RCA Input, 1 channel RCA Output ADPCM Format
Storage
Hard Disk	2 x 3.5-Inch, SATA Interface
Capability	Up to 8TB each HDD (Optional)
Interface
Items	Contents
WAN	1 x 10M/100M/1000M RJ45 Ethernet Port
LAN	8 x 10M/100M/1000M RJ45 Ethernet Port Support PoE 802.3af/at	LAN
Serial Port	1 x RS232, 1 x RS485/RS232 Multiplex
USB	2 x standard USB2.0
Digital Input	2
Cellular (Optional)
Standard & Band	5G NR, 4G LTE FDD, LTE TDD, EVDO, WCDMA, TD-SCDMA, CDMA1X, GPRS/EDGE
Bandwidth	5G NR: Downstream rate 3.4Gbps, uplink rate 350Mbps LTE Cat20: Downstream rate 2.0Gbps, uplink rate 150Mbps FDD-LTE: Downstream rate 150Mbps, uplink rate 50Mbps TD-LTE: Downstream rate 130Mbps, uplink rate 35Mbps
Transmit Power	< 23dBm
Sensitivity	< -97dBm
Power
Power Supply	C13 Interface
Power Range	Non-PoE: DC 12V, AC 110~240V
Power Consumption	2.5W in Standby Status, Support Maximum 120W in PoE Mode
WIFI (Optional)
Standard & Band	Support IEEE802.11b/g/n, 2.4G, support AP & Client mode
Bandwidth	IEEE802.11b/g: Maximum speed rate 54Mbps IEEE802.11n: Maximum speed rate 150Mbps
Transmit Power	26dBm (11b), 21.5dBm (11g), 20dBm (11n)
Sensitivity	<-72dBm@54Mbps
General
Casing	Metal, IP30
Dimensions	439.8x281x45mm (W x D x H)
Weight (without HDD)	3.6KG
Chassis	1U chassis
Working Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity	90% (non-condensing)

Thông tin đặt hàng

Models	Description
F-NVR200-16C8P	1 X 10/100/1000M WAN RJ45 port, 8 x 10/100M LAN RJ45 ports with PoE
F-NVR200-16C8P-4G	1 X 10/100/1000M WAN RJ45 port, 8 x 10/100M LAN RJ45 ports with PoE, High-speed 4G cellular module & 2.4GHz WIFI module
F-NVR200-16C8P-5G	1 X 10/100/1000M WAN RJ45 port, 8 x 10/100M LAN RJ45 ports with PoE, High-speed 5G cellular module & 2.4GHz WIFI module
F-NVR200-16C16P	1 X 10/100/1000M WAN RJ45 port, 16 x 10/100M LAN RJ45 ports with PoE
F-NVR200-16C16P-4G	1 X 10/100/1000M WAN RJ45 port, 16 x 10/100M LAN RJ45 ports with PoE, High-speed 4G cellular module & 2.4GHz WIFI module
F-NVR200-16C16P-5G	1 X 10/100/1000M WAN RJ45 port, 16 x 10/100M LAN RJ45 ports with PoE, High-speed 5G cellular module & 2.4GHz WIFI module

Tài liệu

Datasheet

F-NVR200 User Manual V1.0.0
