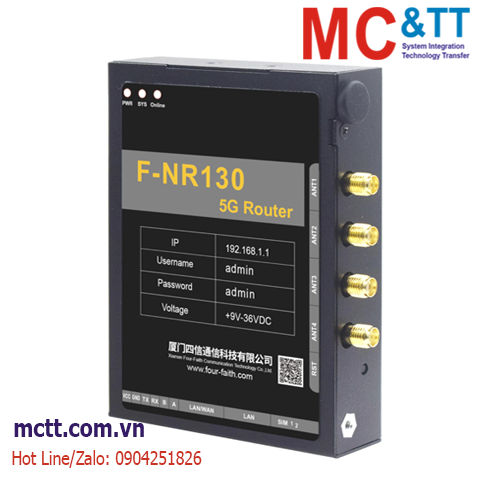

Router công nghiệp 5G 1 cổng WAN/LAN + 1 cổng LAN + Wi-Fi Four-Faith F-NR130
Four-Faith's F-NR130 is an IoT 5G router. It plays the role of transmitting long-distance wireless data through public networks in IoT-applied solutions and other smart interactive scenarios. The F-NR130 adopts industrial-grade designs, including an industrial 32-bit processor and wireless module, and with a watchdog system, which makes it suitable for industrial use and capable of keeping its stable operation even in harsh environments. With standard ports including RS232 and RS485, the F-NR130 5G router has the capacity to connect different devices simultaneously for wireless data transmission.
The F-NR130 5G router has been widely used in the M2M field of the IoT industry chain, such as smart factories, smart transportation, and environmental protection, etc.
Tính năng
- Dual-band: 2.4Ghz & 5.8Ghz
- Outer shell: metal, IP30 waterproof and dust-proof protection
- Standard ports: RS232 & RS485, Ethernet WAN ( LAN), Wi-Fi
- CPU: industrial-grade 32-bit processor & wireless module
- System: watchdog design, complete mechanism, stable operation
- Multiple WAN connection methods, include Static IP/DHCP/PPPOE/DHCP-4G/5G
- Support 3G/4G/5G and wired WAN dual link backup
- Support VPN Client: PPTP/L2TP/IPSEC
- Support VPN Server: PPTP/L2TP/IPSEC
- Remote management SYSLOG/SNMP/TELNET/SSH/HTTPS
- Support local upgrade and remote upgrade
- Import and export configuration files
- Support NTP / Build-in RTC
- Support DDNS
- Support VLAN，MAC address clone and PPPoE server
- WIFI Support 802.11b/g/n/ac. Support AP/AP Client/Bridge mode
- WIFI Support WEP, WPA, WPA2 and other encryption methods
- Support Private APN SIM card
- Support APN/VPDN
- Support DHCP server and DHCP client, NAT, DMZ, QOS
- Support TCP/IP, UDP, FTP (Optional), HTTP and other network protocols
- Support SPI firewall, VPN pass through, ACL, URL filter
Thông số kỹ thuật
| Item |
Content |
| Module |
Industrial grade wireless module |
| Standard and Band |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71
Remarks: Different modules support different network standards |
| Bandwidth |
5G NR：DL 3.4Gbps， UL 350Mbps
LTE Cat20：DL 2.0Gbps，UL 150Mbps
HSPA+：DL 42Mpbs，UL 5.76Mbps |
| TX power |
<23dBm |
| RX sensitivity |
<-97dBm |
WIFI Specification
| Item |
Content |
| Frequency |
IEEE802.11b/g/n, 2.4G, Support AP mode
IEEE802.11ac, 5.8G, Support AP mode |
| Bandwidth |
IEEE802.11b/g：54Mbps
IEEE802.11n：300Mbps
IEEE802.11ac：866Mbps |
| Security |
WEP, WPA, WPA2, etc. WPS (optional) |
| TX power |
26dBm（11b）, 21dBm（11ac/MCS7/HT40）, 20dBm（11ac/MCS9/HT80） |
| RX sensitivity |
<-72dBm@54Mpbs |
| CPU |
Industrial 32 bits CPU |
| FLASH |
32MB |
| DDR3 |
512MB |
| WAN |
1 x 10/100/1000M Ethernet (RJ45), Auto MDI/MDIX, Built-in 1.5KV electromagneticisolationprotection
Remarks: Can be used as LAN port |
| LAN |
1*10/100/1000M Ethernet (RJ45), Auto MDI/MDIX, Built-in 1.5KV electromagnetic isolationprotection |
| Serial |
1 x RS232/RS485, Built-in 1.5KV electromagnetic isolation protection
Data bit：5, 6, 7, 8
Stop bit：1, 1.5 (Optional), 2
Check：NONE, EVEN, ODD, SPACE (Optional), Mark (Optional)
Baud rate：2400~115200bits/s |
| Indicator |
"WIFI", "Online","PWR", "SYS" |
| Antenna |
Cellular：4 standard SMA female antenna interfaces, characteristic impedance50ohms
WIFI：1 standard SMA male antenna interfaces, characteristic impedance 50ohms |
| SIM/UIM |
Standard drawer type user card interface, support 1.8V/3V SIM/UIM card, built-in15KVESDprotection
Support Micro-SIM*2 card and eSIM |
| Reset |
Restore the router to its original factory default settings |
| Power Input |
Standard Power: DC 12V/1.5A
Power Range: DC 9~36V
Consumption <1.2A (12V)
Terminal power socket |
| Physical Characteristic |
Metal shell, IP30
Weight : 285g
106 x 76 x 23.5 mm (Does not include antenna and mounting parts) |
| Environmental Limits |
Operating Temperature: -35~+75ºC (-22~+167℉)
Storage Temperature: -40~+85ºC (-40~+185℉)
Operating Humidity: 95% ( unfreezing) |
Thông tin đặt hàng
| Model |
Content |
| F-NR130 |
Cellular 3G/4G/5G/ 1xRS232,1xRS485,1xLAN and 1xWAN/LAN |
