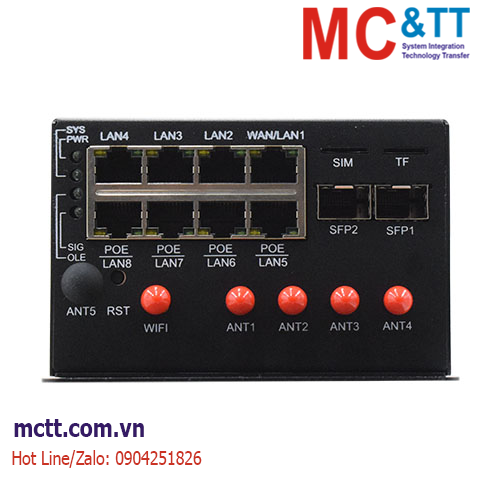

Gateway công nghiệp kết nối 5G + Wifi Four-Faith F-G310
Smart light pole gateway F-G310 is an intelligent gateway specially developed for 5G smart light poles, Internet of Things, and other scenarios. It has powerful equipment access capability, communication protocol conversion, and computing processing capability. The gateway can connect devices with functions such as intelligent lighting, video surveillance, traffic indication, traffic monitoring, environment monitoring, weather monitoring, information release, public broadcasting, public WLAN, emergency help, information interaction, charging service, also communicate through wired, optical fiber, 4G, and 5G.
Connect to the Four-Faith cloud platform and access the cloud platform through the Web to achieve remote management, easy to use PC Client software, remote configuration, remote maintenance, remote data monitoring, enabling enterprises to intelligent management, reduce operation and maintenance costs.
The intelligent gateway can be connected with smart lighting, video monitoring, environmental protection monitoring, meteorological monitoring, LED display, IP voice column, IP horn, one-key alarm, charging pile, environmental sensor, liquid level sensor, tilt sensor, temperature sensor, and other equipment.
Tính năng
- Connect to the Four-Faith cloud platform for remote management
- Support common industrial protocol
- Customize private communication protocols like MQTT, MODBUS TCP, etc.
Integrates multiple communication modes, like ZigBee, LoRa, 4G, 5G, etc.
- Support Ali Could and Baidu Cloud and other third-party platforms
- Encryption modes such as DES and 3DES are supported
- Support software watchdog and hardware watchdog technology
- Support Python and C secondary development environment
- Support Multiple wireless protocol extensions such as standard LoRaWAN protocol
- Support off-network data storage and transmission
- Support IPV4, IPV6
Thông số kỹ thuật
| Project |
Content |
| Module |
Industrial wireless module |
| Standard |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/
B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 |
| Theoretical bandwidth |
5G NR：DL 3.4Gbps，UL 350Mbps
LTE Cat20：DL 2.0Gbps，UL 150Mbps
HSPA+：DL 42Mpbs，UL 5.76Mbps |
| Transmit power |
<23dBm |
| Receiving sensitivity |
<-97dBm |
WIFI Specification
| Project |
Content |
| Standard and Frequency |
Support IEEE802.11b/g/n，2.4G, 2*2 MIMO，AP mode，Station mode（optional） |
| Bandwidth |
IEEE802.11b/g：Max Speed 108Mbps
IEEE802.11n：Max Speed 300Mbps |
| Security |
Support WEP、WPA、WPA2，WPS Optional |
| Transmit power |
26dBm（11b），21.5dBm（11g），20dBm（11n） |
| Receiving sensitivity |
<-72dBm@54Mpbs |
| Project |
Content |
| CPU |
Industrial 32-bit communication processor |
| FLASH |
32MB |
| DDR3 |
512MB |
| TF |
8GB/32GB，optional |
| eMMC |
Reserved 8GB |
| Project |
Content |
| AC input |
1 x 85~264V/35A |
| AC output |
3 x 85~264V/10A，Provide 220V output power supply to the corresponding equipment; remote control switch, voltage and current detection, a single channel allows a maximum current of 10A |
| DC output |
1 x 12V/2A; 1 x 24V/2A; Can realize remote switch and current detection |
| SFP |
2 x SFP interface，10/100/1000M SFP slot，Support single-mode, multi-mode fiber, support ring network management, ring, chain and other network topology |
| WAN |
1 x 10/100/1000M Ethernet（RJ45）,auto MDI/MDIX，Built-in 1.5KV electromagnetic isolation protection |
| LAN |
7 x 10/100/1000M Ethernet（RJ45）auto MDI/MDIX，Built-in 1.5KV electromagnetic isolation protection, Among them, 4 channels of POE, support POE+ single channel power up to 30W |
| Serial |
2 x RS485，Built-in 15KV ESD protection：
Data bit：5、6、7、8
Stop bit：1、2
Check ：NONE、EVEN、ODD
Band rate：2400~115200bits/s |
| Indicators |
"Power", "System", "Online","Signal " |
| LoRa/Zigbee |
Optional |
| Antenna |
Cellular:4x Standard SMA female antenna interface, characteristic impedance 50 ohm
WIFI：1x Standard SMA female antenna interface, characteristic impedance 50 ohm
LoRa/Zigbee：1x Standard SMA female antenna interface, characteristic impedance 50 ohm(optional) |
| SIM/UIM |
2 standard drawer type user card interfaces, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection (Remarks: Compatible with e-SIM) |
| TF |
1 x TF card interface |
| Reset |
Through this button, the parameter configuration can be restored to the factory value |
| Remark |
1. The mainboard reserved DI/DO/ relay interface
2. For the non-full function of the rod, the hardware can be modular (Reduce the cost) |
| Project |
Content |
| shell |
Metal case, protection class IP30 |
| Size |
330 x 108 x 71mm (Excluding antennas and mounts) |
| Weight |
1.8kg |
| Project |
Content |
| Operating temperature |
-35~+75ºC（-31~+167℉） |
| Storage temperature |
-40~+85ºC（-40~+185℉） |
| Relative humidity |
95%(No condensation) |
Thông tin đặt hàng
| Model |
Content |
| F-G310 |
Cellular (5G NR), WIFI, SIM*1 |
| F-G310-4G |
Cellular (4G), WIFI, SIM*1 |
| F-G310-N |
Wifi |
