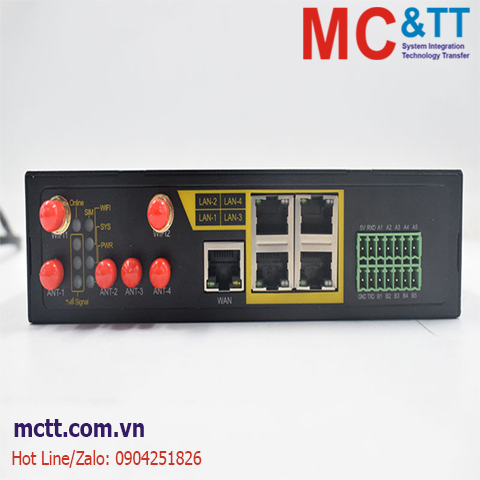

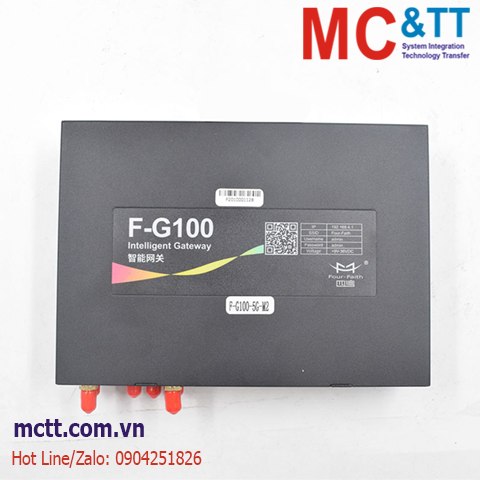

Gateway công nghiệp kết nối 4G/5G + Wifi Four-Faith F-G100

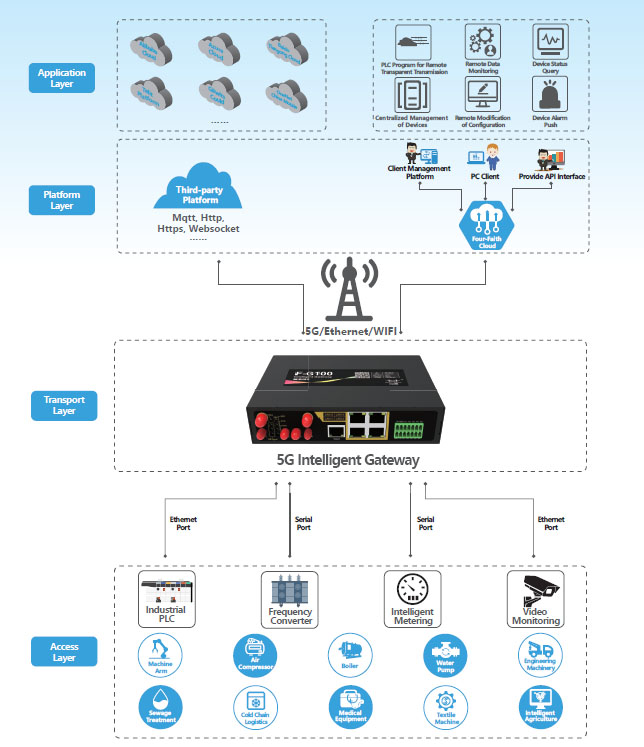

5G Intelligent Gateway F-G100 using a high-performance industrial-grade 32-bit communication processor, industrial-grade wireless module, embedded with the real-time operating system as the software support platform. 5G Intelligent Gateway F-G100 provides 1 RS232, 5 RS485, 4 Ethernet LANs, 1 Ethernet WAN, and WIFI interface so that it can connect serial devices, Ethernet devices, and WIFI devices at the same time.
Tính năng
- Using dual core high performance hardware platform
- WDT watchdog design, system more stable
- With local storage and breakpoint continuation, data will never be lost
- Using complete anti-drop mechanism, data transmission is stable
- Support DES, 3DES and other encryption methods, with VRRP hot backup function
- Support hardware encryption and APN/VPDN private network
- Support SPI firewall, VPN crossing, access control, URL filtering
- Support eSIM to prevent SIM card get theft
- Can provide dialing status, signal value, CPU usage and other API interfaces
- Python development environment can be provided
- Support customized development of software functions
- Support customized development of hardware functions
Thông số kỹ thuật
| Project |
Content |
| Module |
Industrial wireless module |
| Standard |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79
LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25/B26/B28/
B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 |
| Theoretical bandwidth |
5G NR：DL 3.4Gbps，UL 350Mbps
LTE Cat20：DL 2.0Gbps，UL 150Mbps
HSPA+：DL 42Mpbs，UL 5.76Mbps |
| Transmit power |
<23dBm |
| Receiving sensitivity |
<-97dBm |
WIFI Specification
| Project |
Content |
| Standard and Frequency |
Support IEEE802.11b/g/n，2.4G, 2*2 MIMO，AP mode，Station mode（optional）
Support IEEE802.11ac，5.8G, 2*2 MIMO，AP mode，Station mode（optional） |
| Theoretical bandwidth |
IEEE802.11b/g：Max Speed 108Mbps
IEEE802.11n：Max Speed 300Mbps
IEEE802.11ac：Max Speed 780Mbps |
| Security |
Support WEP、WPA、WPA2，WPS Optional |
| Transmit power |
26dBm（11b），21.5dBm（11g），20dBm（11n），16dBm（11ac） |
| Receiving sensitivity |
<-72dBm@54Mpbs |
| Project |
Content |
| CPU |
Industrial 32-bit communication processor |
| FLASH |
32MB |
| DDR3 |
512MB |
| TF |
8GB/32GB，optional |
| Project |
Content |
| WAN Interface |
1 * 10/100/1000M Ethernet（RJ45），Adaptive MDI/MDIX，Built-in 1.5KV ESD Protection |
| LAN Interface |
4 * 10/100/1000M Ethernet（RJ45），Adaptive MDI/MDIX，Built-in 1.5KV ESD Protection |
| Serial |
1 * RS232，5 * RS485（One shared with RS232 interface），Built-in 1.5KV ESD Protection，The serial port parameters are as follows:
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5 (optional), 2 bits
Check: no check, even check, odd check, SPACE (optional) and MARK check (optional)
Serial port speed: 2400 ~ 115200bits / s |
| Indicators |
"PWR", "SYS", "WIFI", "SIM", "Online","Signal Strength" |
| I/O Interface |
6-pin 3.5mm terminal block;
2 DI, 1 DO, 1 relay
Input high level: 5 to 30 VDC
Input low level: 0 to 3 VDC
Load current <50mA @ 30VDC
Relay load: 1A 250VAC / 30VDC |
| Antenna |
Cellular: 2 standard SMA female antenna interfaces, characteristic impedance 50 ohms
WIFI: 2 standard SMA male antenna interfaces, characteristic impedance 50 ohms |
| SIM/UIM |
Standard drawer-type user card interface, support 1.8V / 3V SIM / UIM card, built-in 15KV ESD protection |
| Power |
2-pin terminal power socket with built-in reverse power protection |
| USB |
Standard USB3.0 interface, support various USB storage |
| TF card |
Standard bullet TF card interface, support various TF cards |
| Reset Button |
Through this button, the parameter configuration of the smart gateway can be restored to the factory value. |
| Project |
Content |
| Standard |
DC 12V/1.5A |
| Range |
DC 9~36V |
| Working current |
<1.2 A(12 VDC) |
| Standby current |
<800mA(12 VDC) |
| Project |
Content |
| shell |
Metal case, protection class IP30 |
| Size |
172x122x38 mm (Excluding antennas and mounts) |
| Weight |
700g |
| Project |
Content |
| Operating temperature |
-35~+75ºC（-31~+167℉） |
| Storage temperature |
-40~+85ºC（-40~+185℉） |
| Relative humidity |
95%(No condensation) |
Thông tin đặt hàng
| Model |
Content |
| F-G100-5G |
5G Intelligent PLC Gateway
Gigabit Ethernet Ports（4*LAN+1*WAN）+ 1*RS232 + 5*RS485 + 2*DI + 1*DO + 1*Relay + 1*USB 3.0/Dual WiFi (2.4G and 5G)/TF card |
| F-G100-4G |
4G LTE Intelligent PLC Gateway
Gigabit Ethernet Ports（4*LAN+1*WAN) + 1*RS232 + 5*RS485 + 2*DI + 1*DO + 1*Relay + 1*USB 3.0/Dual WiFi (2.4G and 5G)/TF card |
