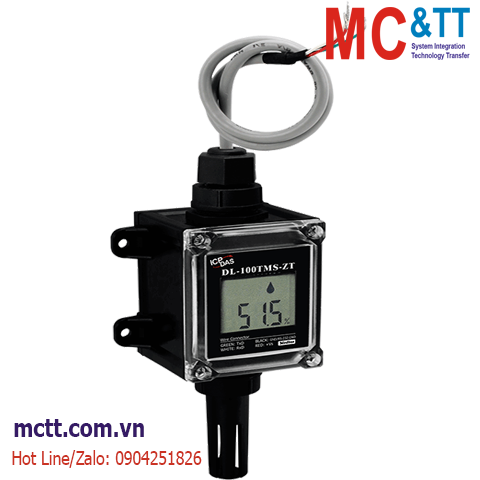

Module đo và hiển thị nhiệt độ + độ ẩm Zigbee Modbus RTU ICP DAS DL-100TMS-ZT CR
Feature
- Measurement Ranges:-20~+60°C and 0~100%RH.
- Accuracy:±0.4°C;±2.0%RH.
- LCD Display Shows Temperature,Humidity and Module ID.
- 10~30VDC Power Input.
- IP66 Waterproof.
- DataLogger Can Store Upto 510 Temperature and Humidity Records.
- Modbus RTU Protocol.
- ISM2.4GHz Operating Frequency.
- Fully Compliant with2.4G IEEE802.15.4/ZigBee 2007 Pro Specifications.
- Wireless Transmission Range upto 100m.
- GUI Configuration Software(Windows Version).
- Supports AES-128 Encryption for the Wireless Communication(Passive).
- Supports ZigBee Repeater Function.
- Surge and ESD Protection.
Introduction
The DL-100TMS-ZT is a one-channel temperature and humidity data logger module. It contains a ZigBee communication interface and an LCM to display the module ID, temperature and humidity data, and allows you define the log time interval depending on your application.
The DL-100TMS-ZT supports the Modbus RTU protocol. We also provide software Utility that can be used to retrieve log data and display it in a chart on your desktop, and also allow you save the log data into an Excel format file.
Application
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations, pharmacies
- Building and energy management
- Warehouses
- Museums, archives, galleries
Specifications
| EMS Protection |
| EFT (IEC 61000-4-4) |
±1 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact Foreach Terminal |
| Temperature Measurement |
| Range |
-20 ~ +60˚C |
| Resolution |
0.1˚C |
| Accuracy |
Typical: ±0.4˚C |
| Precision |
±0.1˚C |
| Humidity Measurement |
| Range |
0 ~ 100% RH (Relative Humidity) |
| Resolution |
0.1% RH |
| Accuracy |
Typical: ±2% RH |
| Precision |
±0.1% RH |
| ZigBee |
| Antenna |
2.4 GHz-PCB Antenna (3 dBi,50 Ω) |
| Protocol |
Supports Modbus RTU |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (Max.19 dBm) |
| Power |
| Consumption |
0.5 W Max. |
| Mechanical |
| Dimensions (mm) |
82 x 172 x 55 (W x L x H) |
| Environment |
| Operating Temperature |
-20 ~ +60°C |
| Storage Temperature |
-25 ~ +75˚C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| DL-100TMS-ZT CR |
ZigBee Temperature and Humidity Module (ZigBee Router) (RoHS) (Asia Only) |
