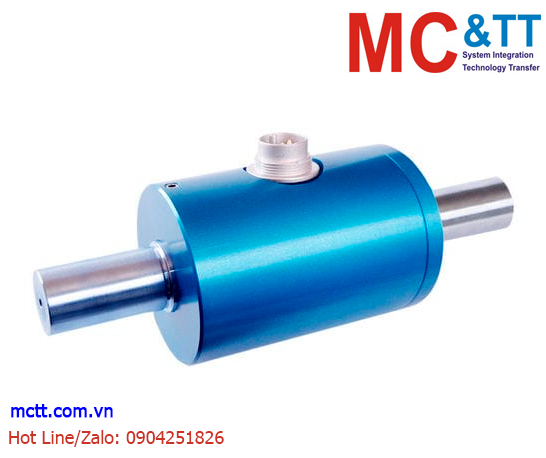

Cảm biến đo Momen xoắn loại trục không quay 0.005 - 20000 Nm Lorenz D-2452, D-2452-P

Mã sản phẩm: D-2452, D-2452-P

Thương hiệu: Lorenz Messtechnik

Tình trạng: Còn hàng

Torque transducer, reactive D-2452 with high torsional stiffness and a nominal torque from 0.005 N·m - 20000 N·m from Lorenz Messtechnik GmbH

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Cảm biến đo Momen xoắn loại trục không quay 0.005 - 20000 Nm Lorenz D-2452, D-2452-P

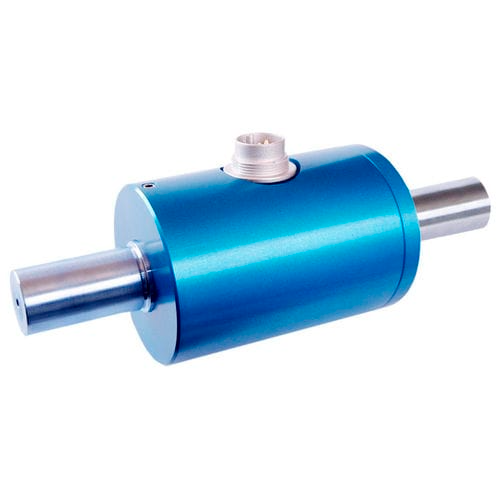

D-2452, Reaction Torque Sensor

The D-2452 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly.

Features:

Round Shafts
Very Short Axial Length
Connection: 7-pin 712 Series Connector
Connection: 12-pin 723 Series Connector
Accuracy Class 0.05% Available
Special Versions on Request

D-2452 - Specifications

Type	Reaction
Full Scale	0.005 Nm
	0.01 Nm
	0.02 Nm
	0.05 Nm
	0.1 Nm
	0.2 Nm
	0.5 Nm
	1 Nm
	2 Nm
	5 Nm
	10 Nm
	20 Nm
	50 Nm
	100 Nm
	200 Nm
	500 Nm
	1000 Nm
	2000 Nm
	5000 Nm
	10000 Nm
	20000 Nm
Output	0.3 mV/V
	0.5 mV/V
	0.8 mV/V
	1.5 mV/V
Precision	±0.10 % FS
Excitation	2 V - 12 V DC
Drive Side	Round Shaft
Test Side	Round Shaft
IP Rating	IP50
Min Temperature	-15 °C
Max Temperature	55 °C

Download

Suitable Coupling (PDF Datasheet):	Stiff Sensor Assembly: 0.005..0.02 N·m Floating Sensor Assembly: 0.005..30 N·m 50..20000 N·m
Suitable Connection Cable (PDF Datasheet):	Connection cable, 3 m, with 6-pin female cable connector and free soldered ends Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends Connection cable, 3 m, with 7-pin female cable connector and free soldered ends Connection cable, 3 m, with 7-pin female angle cable connector and free soldered ends
PDF Datasheet:	080833a_D-2452_en.pdf

Suitable Coupling (PDF Datasheet):

Stiff Sensor Assembly:

0.005..0.02 N·m

Floating Sensor Assembly:

0.005..30 N·m
50..20000 N·m

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends
Connection cable, 3 m, with 7-pin female cable connector and free soldered ends
Connection cable, 3 m, with 7-pin female angle cable connector and free soldered ends

PDF Datasheet:

080833a_D-2452_en.pdf
