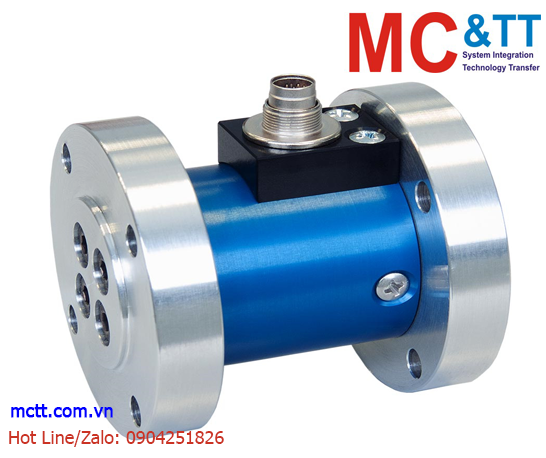

Cảm biến đo Momen xoắn loại trục không quay 1 - 5 Nm Lorenz D-2209

Chia sẻ:
Mã sản phẩm: D-2209
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque flange D-2209, non rotation with high torsional stiffness and a nominal torque from 1 N•m - 5 N•m produced and distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 1 - 5 Nm Lorenz D-2209

D-2209, Flange Mount Reaction Torque Sensor
The D-2209 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness are paired with fixing shoulders on both sides, leading to simple handling and simple assembly.

Features:

  • Flange Mounting
  • Very Short Axial Length
  • Connection: 7-pin Series 712 Connector
  • Fixing Shoulders
  • Special Versions on Request

D-2209 - Specifications

Type Reaction
Full Scale 1 Nm
  2 Nm
  5 Nm
Output 1 mV/V
Precision ±0.20 % FS
Excitation 2 V - 12 V DC
Drive Side Flange
Test Side Flange
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 7-pin female cable connector and free soldered ends
Connection cable, 3 m, with 7-pin female angle cable connector and free soldered ends

PDF Datasheet: 080849a_D-2209_en.pdf
