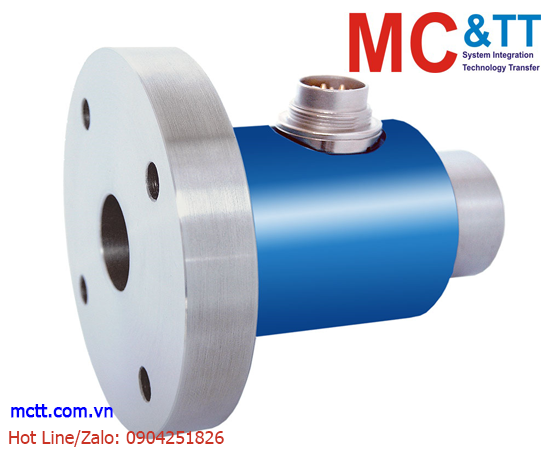

Cảm biến đo Momen xoắn loại trục không quay 2 - 5000 Nm Lorenz D-2223

Chia sẻ:
Mã sản phẩm: D-2223
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque flange, non rotation, with square socket D-2223 with high torsional stiffness and a nominal torque from 2 N·m - 5000 N·m from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 2 - 5000 Nm Lorenz D-2223

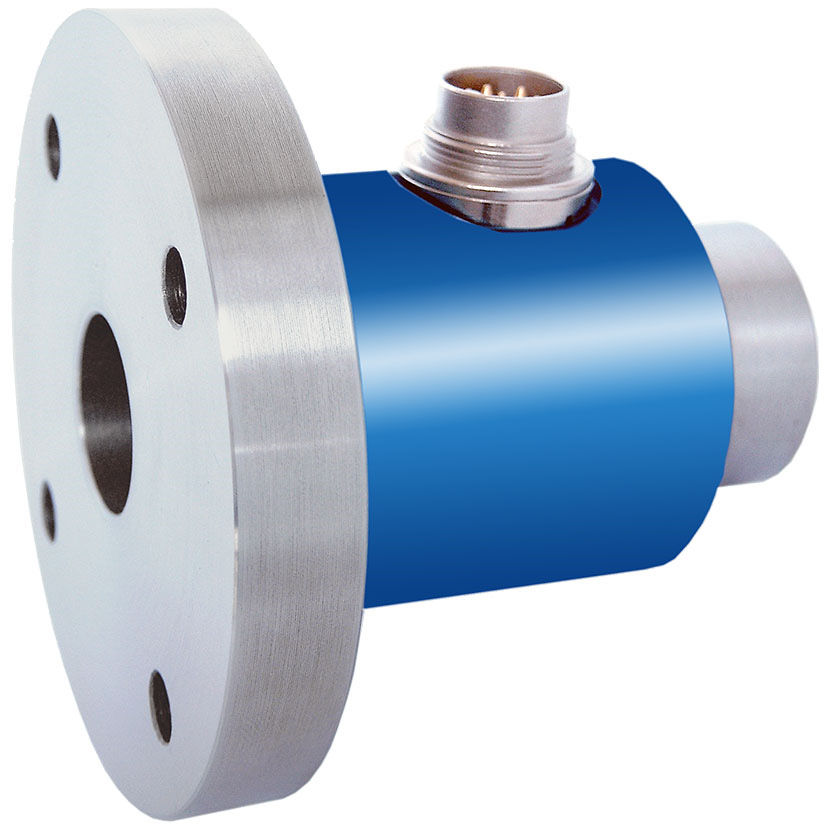

D-2223, Reaction Torque Sensor
The D-2223 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness are paired with fixing shoulders on both sides, leading to simple handling and simple assembly.

Features:

  • Flange & Square Drive
  • Very Short Axial Length
  • Connection: 6-pin Series 723 Connector
  • Special Versions on Request

D-2223 - Specifications

Type Reaction
Full Scale 2 Nm
  5 Nm
  12 Nm
  25 Nm
  63 Nm
  100 Nm
  160 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
Output 1 mV/V
Precision ±0.20 % FS
Excitation 2 V - 12 V DC
Drive Side Flange
Test Side Square Shaft
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Dowload

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080847a_D-2223_en.pdf
