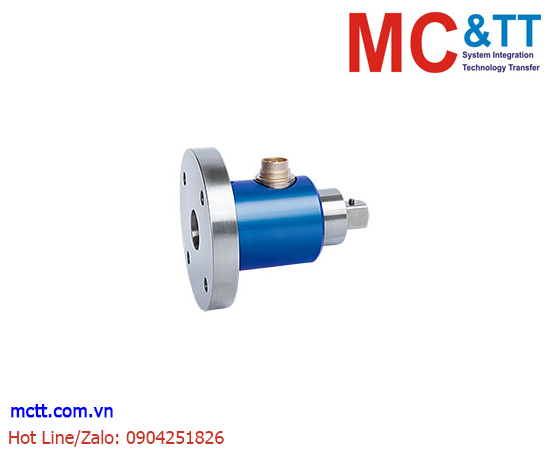

Cảm biến đo Momen xoắn loại trục không quay 2 - 2000 Nm Lorenz DFW-35

Chia sẻ:
Mã sản phẩm: DFW-35
Thương hiệu: Lorenz Messtechnik
Tình trạng: Còn hàng

Torque transducer, non rotation DFW-35, with high torsional stiffness and a nominal torque from 2 N·m - 2000 N·m from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 2 - 2000 Nm Lorenz DFW-35

DFW-35, Reaction Torque Sensor
The DFW-35 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness paired with through hole design allow for simple handling and simple assembly.

Features:

  • Flange & Square Drive
  • Very Short Axial Length
  • Connection: 6-pin Series 723 Connector
  • Flange Mounting
  • Special Version on Request

DFW-35 - Specifications

Type Reaction
Full Scale 2 Nm
  5 Nm
  12 Nm
  25 Nm
  63 Nm
  100 Nm
  160 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
Output 1 mV/V
Precision ±0.20 % FS
Excitation 2 V - 12 V DC
Drive Side Flange
Test Side Square Shaft
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080845a_DFW-35_en.pdf
