Cảm biến đo Momen xoắn loại trục không quay 10 - 20000 Nm Lorenz DF-30

Chia sẻ:
Mã sản phẩm: DF-30
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque flange, non rotation DF-30, with high torsional stiffness and a nominal torque from 10 N·m - 20000 N·m produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 10 - 20000 Nm Lorenz DF-30

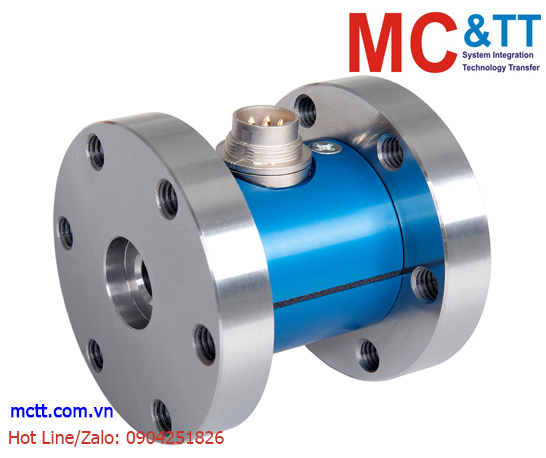

DF-30, Flange Mount Reaction Torque Sensor
The DF-30 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness paired with through hole design allow for simple handling and simple assembly.

Features:

  • Through Hole
  • Very Short Axial Length
  • Connection: 6-pin Series 723 Connector
  • Flange Mounting
  • Special Version on Request

DF-30 - Specifications

Type Reaction
Full Scale 10 Nm
  20 Nm
  50 Nm
  100 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
  10000 Nm
  20000 Nm
Output 1 mV/V
Precision ±0.10 % FS
Excitation 2 V - 12 V DC
Drive Side Flange
Test Side Flange
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080853b_DF-30_en.pdf
