Cảm biến đo Momen xoắn loại trục không quay 0.1 - 20 Nm Lorenz D-2431

Chia sẻ:
Mã sản phẩm: D-2431
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque Sensor for screw driving systems D-2431 with high torsional stiffness and a nominal torque from 0.2 N·m - 20 N·m from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 0.1 - 20 Nm Lorenz D-2431

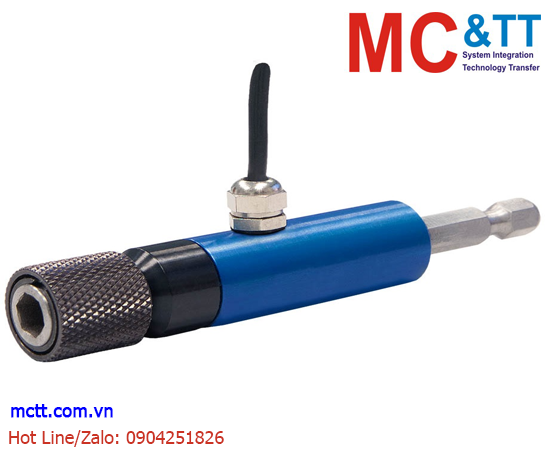

D-2431, Reaction Torque Sensor
The D-2431 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly.

Features:

  • Hexagon Socket & Shaft
  • Very Short Axial Length
  • Connection: 3m Integral Cable
  • Special Version on Request

D-2431 - Specifications

Type Reaction
Full Scale 0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
Output 1 mV/V
Precision ±0.20 % FS
Excitation 2 V - 12 V DC
Drive Side 1/4in Hexagon Socket
Test Side 1/4in Hexagon Shaft
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Download

PDF Datasheet: 080839b_D-2431_en.pdf
