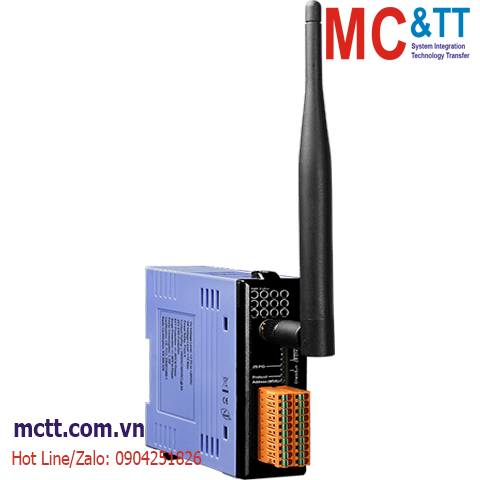

Module Zigbee Modbus RTU 4 kênh AI + 2 kênh AO + 2 kênh DI + 2 kênh DO ICP DAS ZT-2026 CR
Feature
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- External DIP and Rotary Switches for easy Configuration
- GUI Configuration Software (Windows Version)
- 4 AI, 2 AO, 2 DI and 2 DO Channels
- Individual Channel Configuration
- Overvoltage Protection is up to 240 Vrms
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
Introduction
The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels(Current input requires optional external 125 Ω resistor), 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms overvoltage protection. There are also options for a power-on value and a safe value. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2500 VDC (for AI, AO, DI and DO) |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Power Line, Communication Line and each Channel,
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| ZigBee |
| Antenna |
2.4 GHz - 5 dBi Omni-directional Antenna |
| Certifications |
FCC/FCC ID, CE (RED excluded) |
| Max. Slaves |
255 |
| Protocol |
Supports DCON and Modbus RTU Protocols |
| Standard |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certificated) (Max. 19 dBm) |
| Transmission Distance (LoS) |
700 m (Typical) |
| Analog Input |
| Channels |
4 Differential |
| Type |
±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV or -20 mA ~ +20 mA
(Requires Optional External 125 Ω Resistor) |
| Accuracy |
±0.1% of FSR |
| Sampling Rate |
10 Samples/Second (Total) |
| Bandwidth |
15.7 Hz |
| Input Impedance |
>2 MΩ |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Analog Output |
| Channels |
2 |
| Type |
±10 VDC, ±5 VDC, 0 ~ 10 VDC or 0 ~ 5 VDC |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Programmable Output Slope |
0.0625 ~ 512 V/Second |
| Voltage Output Capability |
20 mA @ 10 V |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Digital Input |
| Channels |
2 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink |
| ON Voltage Level |
Wet: +3.5 VDC ~ +50 VDC |
| OFF Voltage Level |
Wet: Max. +1 VDC |
| Input Impedance |
10 KΩ |
| Digital Output |
| Channels |
2 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+5 VDC ~ +50 VDC |
| Load Current |
700 mA/channel |
| Power on Value |
Yes |
| Safe Value |
Yes |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (Reverse Polarity Protection) |
| Consumption |
2.1 W Max. |
| Mechanical |
| Dimensions (mm) |
33 x 87 x 110 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ZT-2026 CR |
ZigBee Wireless 4-ch Voltage Input, 2-ch Voltage Output, 2-ch DI and 2-ch DO Module (ZigBee Router) (RoHS)
(Asia Only) |
