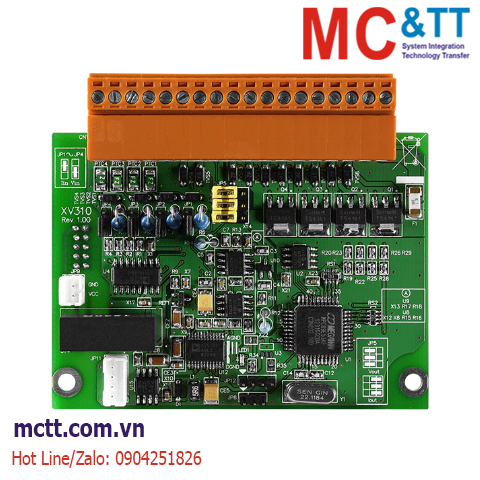

Card mở rộng 4 kênh AI + 2 kênh AO + 4 kênh DI + 4 kênh DO ICP DAS XV310 CR
The XV310 is a multifunction expansion board that includes 4 analog input channels, 2 analog output channels, 4 digital input channels and 4 digital output channels. It provides a programmable input range on all analog input channels (+/-1 V, +/-2.5 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA or 4 ~ 20 mA), analog output channels are 12- bit at +/-5 V, +/-10 V, 0 ~ 20 mA or 4 ~ 20 mA. Each analog input channel can be configured for an individual range and provides a high overvoltage protection of 120 VDC. Voltage and current inputs/outputs are jumper selectable.
Tính năng
- Multifunction (4 AI, 2 AO, 4 DI, 4 DO)
- Individual Channel Configuration
- Jumper Selectable Voltage or Current Input/Output
- Open Wire Detection for Current Output
- Configurable Power-on Value Settings
- Digital Input Channels can be used as 32-bit Counters
- 120 VDC Overvoltage Protection for Analog Input
- 60 VDC Overvoltage Protection for Digital Input
- Overload Protection for Digital Output
- Short-circuit Protection for Digital Output
Thông số kỹ thuật
| Isolation |
| Intra-module Isolation |
2000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Analog Input |
| Channels |
4 |
| Type |
±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: ±0.1 %
Fast Mode: ±0.5 % |
| Sampling Rate |
Normal Mode: 10 Hz
Fast Mode: 200 Hz (Total) |
| Overvoltage Protection |
120 VDC |
| Individual Channel Configuration |
Yes |
| Analog Output |
| Channels |
2 |
| Type |
0 V ~ +5 V, ±5 V, 0 V ~ +10 V, ±10 V, 0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) |
| Resolution |
12-bit |
| Accuracy |
±0.1% |
| Voltage Output Capability |
10 V @ 20 mA |
| Current Load Resistance |
500 Ω |
| Individual Channel Configuration |
Yes |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Max. Counts |
32-bit (0~4,294,967,285) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Overvoltage Protection |
60 VDC |
| Digital Output |
| Channels |
4 |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 to +40 VDC |
| Load Current |
650 mA/channel |
| Overvoltage Protection |
47 VDC |
| Overload Protection |
Yes |
| Short-circuit Protection |
Yes |
| Power on Value |
Yes, Programmable |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus/RTU |
| Power |
| Consumption |
1.6 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Thông tin đặt hàng
| XV310 CR |
4-ch AI, 2-ch AO, 4-ch DI (Dry) and 4-ch DO (Source, PNP, 10 ~ 40 VDC) Expansion Board (RoHS) |
