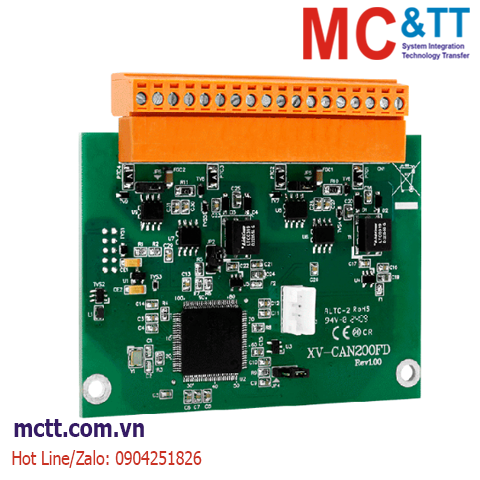

Card mở rộng 2 cổng CAN FD ICP DAS XV-CAN200FD CR
The XV-CAN200FD provides 2-port isolation CAN FD expansion for LP-2241M.
Each channel features Isolation CAN port. It provides quick and easy expansion of CAN Bus communication interfaces for LP-2241M applications
Tính năng
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO (Bosch) standards switchable
- CAN FD bit rates for data field from 100 kbps to 10000 kbps
- CAN bit rates from 10 kbps to 1000 kbps
Thông số kỹ thuật
| COM Ports |
| Ports |
2 |
| Baud Rate |
CAN bit rates: 10 k ~ 1 M bps,
CAN FD bit rates for data field: 100 k ~ 10M bps |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photocoupler |
| Power |
| Consumption |
1.5 W Max. |
| Mechanical |
| Dimensions (mm) |
62 x 80 x 13.5 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specification Memo
Note: XV-CAN200FD Supports LP-2241M Only.
Thông tin đặt hàng
| XV-CAN200FD CR |
2-port CAN FD Expansion Board (RoHS) |
