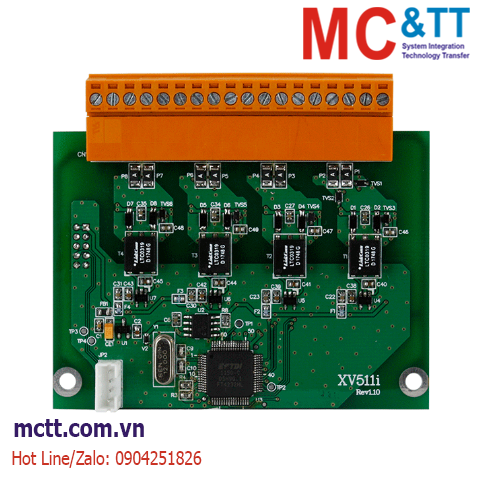

Card mở rộng 4 cổng RS-485 ICP DAS XV511i CR
The XV511i Provides 4 Channel Isolation RS-485 Expansion for UA-2241M, WP-2241M-CE7 and LP-2241M.
4KV ESD protection and Isolation RS-485 Port, quickly and easily expand the RS-485 communication interface.
Tính năng
- 4 Port RS-485 Expansion
- Baud 921600 bps (MAX) supports
Thông số kỹ thuật
| COM Ports |
| Ports |
4 x RS-485 |
| Baud Rate |
921600 bps Max. |
| Mechanical |
| Dimensions (mm) |
66 mm x 82 mm x 14 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Specification Memo
Note1: XV511i Supports UA-2241M/WP-2241M-CE7/LP-2241M Only.
Note2: XV511i model DO NOT support the UA-2241MX-4GE/4GC model, please do not buy it as an optional board.
Thông tin đặt hàng
| XV511i CR |
4-channel RS-485 I/O Expansion Board (RoHS) |
