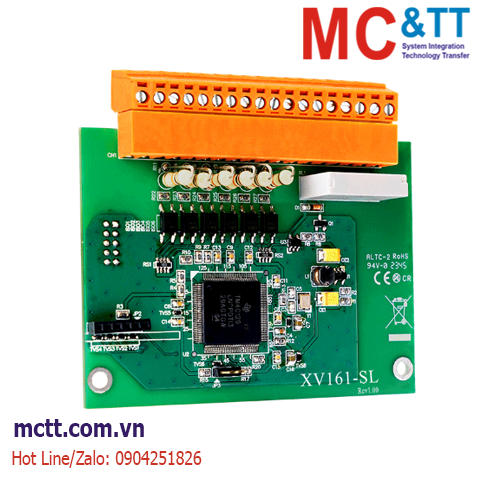

Card mở rộng 6 kênh DI + 1 kênh Relay ICP DAS XV161-SL CR
The XV161-SL is an XV Series I/O expansion board featuring 6 channels of DC digital inputs and 1 relay output. It is designed for monitoring the status of stack lights used in MES (Manufacturing Execution System) equipment.
The sub-board can detect whether each color segment of a stack light is off, on, or flashing. In addition to monitoring individual color segments, it also supports defining and reporting multi-color combinations, along with the duration of previous status states, providing comprehensive insight into machine signaling behavior.
Tính năng
- Able to detect the status of each color segment: ON, OFF, or Flashing
- 6 channel DC digital input and 1 channel alarm relay output
- Users-define multiple color segment combinations for status monitoring
- Reports the duration of the previous status
- Digital input provides 70 VDC overvoltage protection
- Digital output provides power-on value and safe value settings
Thông số kỹ thuật
| Digital Input |
| Able to detect the status of each color segment: ON, OFF, or Flashing |
Yes |
| Digital Input |
| Channels |
6 |
| Type |
Wet Contact ( Sink / Source ) |
| ON Voltage Level |
+10 VDC ~ 50 VDC |
| OFF Voltage Level |
+4 VDC Max. |
| Isolation |
3750 VDC |
| Input Impedance |
10 kΩ，0.5 W |
| Overvoltage Protection |
70 VDC |
| Max. Stack Light Flashing Speed |
3 kHz |
| Report Duration of Previous Status |
10 ~ 65500 Sec. |
| Status monitoring for user-defined combinations of multiple color segments |
Max. 81 combinations |
| Relay Output |
| Channels |
1 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Contact Rating |
5 A @ 250 VAC/30 VDC |
| Operate Time |
6 ms |
| Release Time |
3 ms |
| Electrical Endurance |
VDE：
5 A @ 250 VAC 30,000 ops (10 ops/min) at 75℃
5 A @ 30 VDC 70,000 ops (10 ops/min) at 75℃
UL：
5 A @ 250 VAC/30 VDC 6,000 ops
3 A @ 250 VAC/30 VDC 100,000 ops |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
Thông tin đặt hàng
| XV161-SL CR |
Single Stack Light (DC-type) Monitoring XV Expansion Board ( 6 DI + 1 Relay ) (RoHS) |
