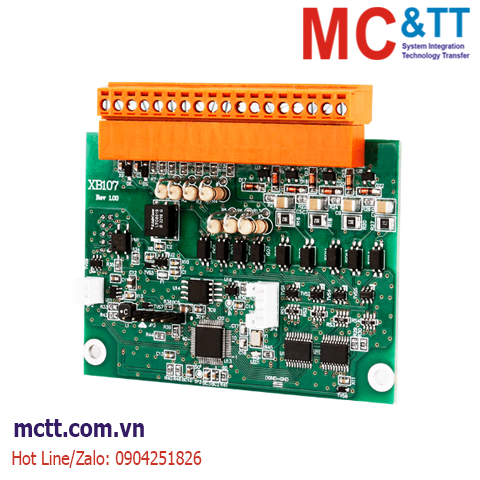

Bo mạch mở rộng 8 kênh DI và 7 kênh DO ICP DAS XB107 CR
The XB107 is an 8-channel DI (Wet/Dry Contact) and 8-channel DO (Sink-type or Source-type) expansion board,selectable via wiring.
Each input channel functions as a 32-bit counter. The output channels feature built-in overload and short-circuit protection and support a software-configurable power-on value to guarantee safe module operation in hazardous voltage environments.
Feature
- 8-ch DI (Wet/Dry)
- 7-ch DO (Sink/Source)
- Individual Channel Configuration
- Configurable Power-on Value Settings
- Overvoltage Protection for Digital Output
- Short-circuit Protection for Digital Output
- Digital Input Channels can be used as 32-bit Counters
Application
Specifications
| Isolation |
| Intra-module Isolation |
2000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry Contact
Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source
Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +5 ~ +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +1 VDC (max.) |
| Max. Counts |
32-bit |
| Frequency |
15 kHz |
| Min. Pulse Width |
33 us |
| Overvoltage Protection |
+60 VDC |
| Low Pass Filter |
0.1 ~ 6553.5 ms (0.08 Hz ~ 5000 Hz) |
| Digital Output |
| Channels |
8 |
| Type |
Push-Pull |
| Sink/Source (NPN/PNP) |
Sink/Source |
| Load Voltage |
+3.5 ~ +80 V |
| Load Current |
700 mA/channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
Yes |
| Short-circuit Protection |
Yes |
| Power on Value |
Yes, Programmable |
| USB |
| Specification |
USB 2.0 High-Speed (480 Mbps) |
| Power |
| Consumption |
2 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| XB107 CR |
8-ch Isolated DI (Dry,Wet) and 7-ch Isolated DO (Sink/Source) Expansion Board (RoHS) |
