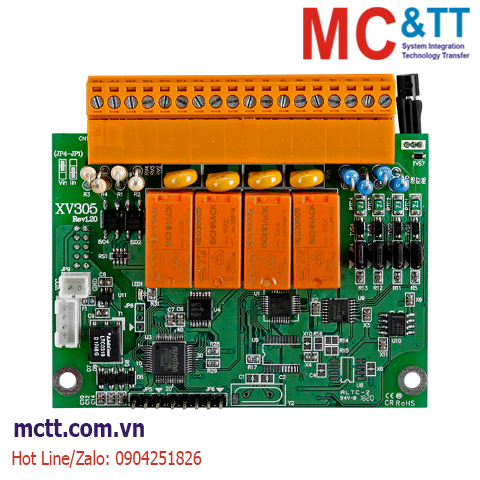

Card mở rộng 4 kênh đầu vào cặp nhiệt điện + 4 kênh DI + 4 kênh Relay ICP DAS XV305 CR
The XV305 is a multifunction expansion board that includes 4 Analog Input channels, 4 Digital Input channels and 4 Form A Relay Output channels. The Analog Input channels are current and voltage input, as well as thermocouple input, voltage and current inputs are jumper selectable. The XV305 also provides options for configuring power-on values for the Relay Output. 4 kV ESD protection and 2000 VDC intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.
Tính năng
- Multifunction (4 AI, 4 DI, 4 Relay)
- Individual Channel Configuration for Analog Input
- Jumper Selectable Voltage or Current Input
- Current, Voltage or Thermocouple Input
- Open Wire Detection for Current Output
- Configurable Power-on Value Settings
- ±120 VDC Overvoltage Protection for Analog Input
- 70 VDC Overvoltage Protection for Digital Input
Thông số kỹ thuật
| Isolation |
| Intra-module Isolation |
2000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact For Each Terminal
±8 kV Air For Random Terminal |
| Analog Input |
| Channels |
4 Single-ended |
| Type |
±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Sensor Type |
Thermocouple: J, K, T, E, R, S, B, N, C
Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V (Jumper Selectable)
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
0.1% of FSR |
| Sampling Rate |
10 Hz (Total) |
| Input Impedance |
> 400 kΩ |
| Common Voltage Protection |
25 VDC |
| Overvoltage Protection |
±120 VDC |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+3.5 ~ +50 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Max. Counts |
32-bit (0 ~ 4, 294, 967, 285) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Input Impedance |
10 KΩ, 0.5 W |
| Overvoltage Protection |
70 VDC |
| Relay Output |
| Channels |
4 |
| Type |
Power Relay (Form A) |
| Contact Rating |
6 A @ 35 VDC
6 A @ 240 VAC |
| Operate Time |
5 ms (typical) |
| Release Time |
1 ms (typical) |
| Electrical Endurance |
1 x 10^5 ops. |
| Mechanical Endurance |
30 x 10^6 ops. |
| Power on Value |
Yes |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
115200 bps |
| Data Format |
N, 8, 1 |
| Protocol |
Modbus/RTU |
| Power |
| Consumption |
2.9 W Max. |
| Powered from Terminal Block |
5 VDC |
| Mechanical |
| Dimensions (mm) |
59 mm x 82 mm x 13 mm (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Thông tin đặt hàng
| XV305 CR |
4-ch Thermocouple Input, 4-ch DI (Wet) and 4-ch Power Relay (6A Rating Current) Expansion Board (RoHS) |
