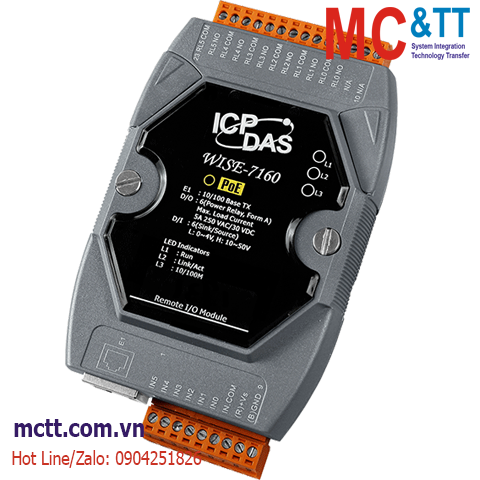

Module lập trình nhúng Wise IoT 6 kênh DI + 6 kênh Power Relay ICP DAS WISE-7160 CR

Chia sẻ:
Mã sản phẩm: WISE-7160
Thương hiệu: ICP DAS
Tình trạng:

Intelligent I/O Module with 6-ch DI and 6-ch Power Relay

Liên hệ
Mô tả

Module lập trình nhúng Wise IoT 6 kênh DI + 6 kênh Power Relay ICP DAS WISE-7160 CR

Feature

  • Runs on browsers, no extra software tool is required.
  • No more programming, Web pages provided for control logic editing.
  • IF-THEN-ELSE logic rules execution ability.
  • Built-in I/O (DI: 6-channels; DO: 6-channels Power Relay).
  • Support I/O channel monitoring/control, Timer operations.
  • Support non-SSL Email sending and CGI Command sending operations.
  • Modbus TCP Protocol for SCADA System Integration.
  • IEEE 802.3af-compliant Power over Ethernet (PoE).

Introduction

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.

WISE-7160 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7160 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.

This module WISE-7160 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 6 power relay outputs and 6 isolated wet contact digital inputs. Each power relay supports contact rating as 5 A @ 250 VAC or 5 A @ 30 VDC and each digital input channel supports counter input.

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.

More detailed application case, you can find on here.

Specifications

Software
Protocol • Modbus TCP
• CGI Command (Sending)
Function • Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
CPU Module
CPU 16-bit CPU (80 MHz)
Isolation
Intra-module Isolation 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed
Digital Input/Counter
Channels 6
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +10 VDC ~ +50 VDC
OFF Voltage Level +4 VDC Max.
Max. Counts 16-bit (65535)
Frequency 50 Hz
Min. Pulse Width 10 ms
Input Impedance 10 kΩ
Overvoltage Protection +70 VDC
Relay Output
Channels 6
Type Power Relay, Form A (SPST N.O.)
Contact Rating 5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time 10 ms (max.)
Release Time 5 ms (max.)
Electrical Endurance 100,000ops.
Mechanical Endurance 20,000,000 ops.
Ethernet
Ports RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X
PoE Yes
Power
Reverse Polarity Protection Yes
Input Range 12 ~ 48 VDC
Consumption 2.8 W
Powered from PoE Yes, IEEE 802.3af, Class 1
Powered from Terminal Block Yes, 12 ~ 48 VDC
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting/Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

WISE-7160     CR  Intelligent I/O Module with 6-ch DI, 6-ch Power Relay and PoE (RoHS)
