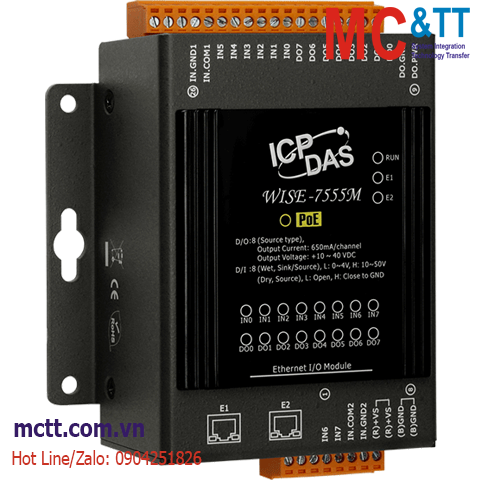

Module lập trình nhúng Wise IoT 8 kênh DI + 8 kênh DO ICP DAS WISE-7555M CR
Feature
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (DI: 8 Channels; DO: 8 Channels).
- Support I/O channel monitoring/control, Timer, Schedule operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- MQTT Protocol for IT & IoT (Internet of Things) System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
- 2-port Ethernet Switch for Daisy-Chain Topology.
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development.
WISE-7555M provides 8 Dry/wet contact digital input channels and 8 source-type digital output channels. It features optical isolation for 2500 VDC of transient overvoltage protection but doesn’t provide channel-to-channel isolation. It can safely be used in applications where hazardous voltages are present. WISE-7555M follows IEEE 802.3af- compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7555M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.
By integrating with IF-THEN-ELSE rule engine, WISE-7555M provides powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7555M also supports Modbus TCP and MQTT protocols to make seamless integration with SCADA, IT and IoT (Internet of Things) system.
Application
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote diagnosis and Testing Equipment, etc.
More detailed application case, you can find on here.
Specifications
| Software |
| Protocol |
• Modbus TCP
• CGI Command (Sending)
• MQTT Client (non-SSL)
• Active I/O (MQTT Publish) |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (72 rules supported)
• I/O channel monitoring and control
• Timer operation (24 set supported)
• Schedule operation (24 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (24 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function
• SNTP Time Synchronization |
| CPU Module |
| CPU |
32-bit CPU (400 MHz) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
16 x I/O Channel Status |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Dry + Wet Contact |
| Sink/Source (NPN/PNP) |
Dry: Source
Wet: Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 VDC ~ +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Effective Distance |
500 M Max. |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
+70 VDC |
| Digital Output |
| Channels |
8 |
| Type |
Isolated Open Collector |
| Sink/Source (NPN/PNP) |
Source |
| Load Voltage |
+10 VDC ~ +40 VDC |
| Load Current |
650 mA/Channel at 25°C |
| Overvoltage Protection |
47 VDC |
| Short-circuit Protection |
Yes |
| Ethernet |
| Ports |
RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
3.7 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
97 x 120 x 42 (W x L x H) |
| Installation |
Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| WISE-7555M CR |
Intelligent I/O Module with 2-port Ethernet Switch, 8-ch DI, 8-ch DO and PoE. Supports Modbus/TCP and MQTT (RoHS) |
